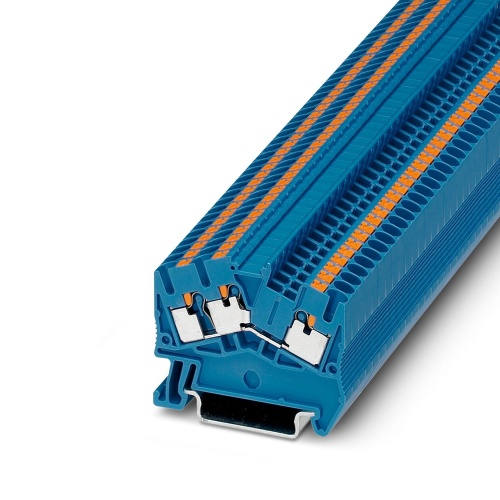

Phoenix Contact 3211906 Feed-through terminal block PTS 2,5-TWIN BU
Normally In Stock
Code: 42307
PTS 2,5-TWIN BU Phoenix Contact 3211906 Feed Through Terminal Block - PTS 2,5-TWIN BU Push-In Connection 1 Level 5.2 mm with 3 Connections. Not Grounded, Not Fused Blue. 800 V, 28 A max rating.
Condition: New
Usually Ships Same day or Next Day$2.20
Sale Price
$1.83
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 3211906 A feed-through terminal block features a nominal voltage of 800V and can handle up to 24A of current, with three connection points that utilize a push-in method for easy installation. The rated cross-sectional area ranges from 0.14mm2-4mm2 across one level of mounting, and the product is mounted using type NS 35/7,5 and NS 35/15 designs, while the terminal block itself has a blue color.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Voltage Rating
800 Volt
Terminal Block Fused
Not Fused
Terminal Block Width
5.2 mm
Terminal Block Number of Levels
1
Terminal Block Number of Connections
3
Terminal Block Component Color
Blue
Terminal Block Grounded
Not Grounded
Terminal Block Max Wire Size
12
Terminal Block Min Wire Size
26
Terminal Block Connection Method
Push-In Connection
Terminal Block Amperage
24 Amp
Component
Terminal Block
Manufacturer
Phoenix Contact
Sub Component
Feed-Through Terminal Block
Sub Component
Multi-Conductor Terminal Block
Features
2, 3, and 4-conductor terminal blocks with the same shape
Ground terminal blocks of the same shape are available
The PTS 2,5, which is equipped with four bridge shafts, offers a wide range of potential bridging options
Angled conductor entry for use in flat terminal boxes
Large space saving when used in concealed wiring systems
Downloads
Phoenix 3211906 CAD data International.dxfPhoenix 3211906 CAD data International.pdfPhoenix 3211906 CAD data International.stpPhoenix 3211906 Certification English.pdfPhoenix 3211906 Certification International.pdfPhoenix 3211906 Manufacturers declaration International-2.pdfPhoenix 3211906 Manufacturers declaration International.pdfPhoenix 3211906 Safety note English.pdfPhoenix 3211906 Tender Text English.zipPhoenix 3211906 User instructions for the Ex Area International.pdf
