Code: 42304

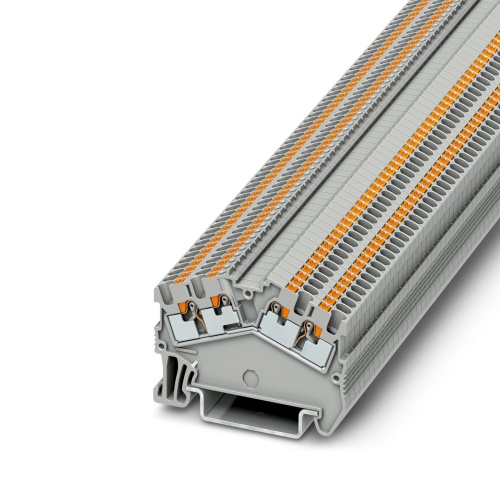

Phoenix Contact 3214615 Feed-through terminal block PTS 1,5/S-QUATTRO
Normally In Stock
PTS 1,5/S-QUATTRO Phoenix Contact 3214615 Feed Through Terminal Block - PTS 1,5/S-QUATTRO Push-In Connection 1 Level 3.5 mm with 4 Connections. Not Grounded, Not Fused Gray. 500 V, 17.5 A max rating.
Condition: New
Usually ships within 7-14 days. Call for ship time.$2.16
Sale Price
$1.80
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 3214615 The terminal block has a nominal voltage of 500V and can handle up to 17.5A of current, accommodating four connections through push-in connections with cross-sectional ratings ranging from 0.14mm2 to 1.5mm2, mounted using type NS35/7.5 or NS35/15, with a gray color finish.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Voltage Rating
500 Volt
Terminal Block Fused
Not Fused
Terminal Block Number of Levels
1
Terminal Block Number of Connections
4
Terminal Block Width
3.5 mm
Terminal Block Component Color
Gray
Terminal Block Grounded
Not Grounded
Terminal Block Min Wire Size
26
Terminal Block Connection Method
Push-In Connection
Terminal Block Max Wire Size
14
Terminal Block Amperage
17.5 Amp
Component
Terminal Block
Manufacturer
Phoenix Contact
Sub Component
Feed-Through Terminal Block
Sub Component
Multi-Conductor Terminal Block
Features
2, 3, and 4-conductor terminal blocks with the same shape

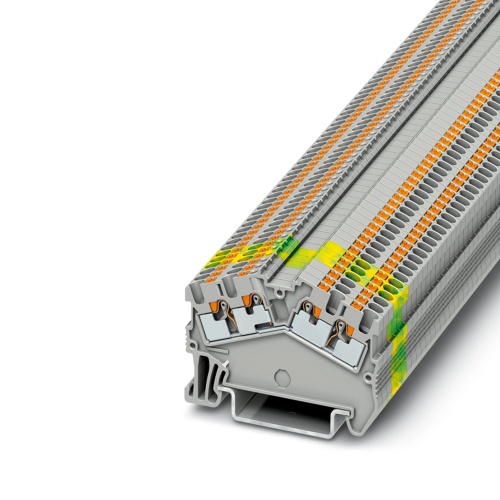

Ground terminal blocks of the same shape are available
The PTS 2,5, which is equipped with four bridge shafts, offers a wide range of potential bridging options
Angled conductor entry for use in flat terminal boxes
Large space saving when used in concealed wiring systems
Downloads
Phoenix 3214615 CAD data International.dxfPhoenix 3214615 CAD data International.pdfPhoenix 3214615 CAD data International.stpPhoenix 3214615 Certification English.pdfPhoenix 3214615 Certification International.pdfPhoenix 3214615 Manufacturers declaration International-2.pdfPhoenix 3214615 Manufacturers declaration International.pdfPhoenix 3214615 Safety note English.pdfPhoenix 3214615 Tender Text English.zipPhoenix 3214615 User instructions for the Ex Area International.pdf
