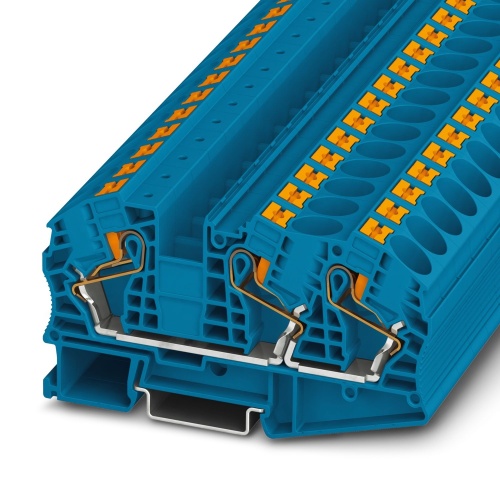

Phoenix Contact 3208773 Feed-through terminal block PT 16-TWIN N BU
Normally In Stock
Code: 42301
PT 16-TWIN N BU Phoenix Contact 3208773 Feed Through Terminal Block - PT 16-TWIN N BU Push-In Connection 1 Level 12.2 mm with 3 Connections. Not Grounded, Not Fused Blue. 1000 V, 85 A max rating.
Condition: New
Usually ships within 7-14 days. Call for ship time.$6.94
Sale Price
$5.78
MUST BUY IN PACKS OF 25
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 3208773 A feed-through terminal block features a nominal voltage of 1000 V and a nominal current capacity of 76 A, with three push-in connections available. The rated cross-sectional area is 16 mm2, spanning from 0.5 mm2 to 25 mm2, and can be mounted using either NS 35/7.5 or NS 35/15 configurations, with an additional blue color option for identification purposes.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Voltage Rating
1000 Volt
Terminal Block Fused
Not Fused
Terminal Block Width
12.2 mm
Terminal Block Number of Levels
1
Terminal Block Number of Connections
3
Terminal Block Component Color
Blue
Terminal Block Grounded
Not Grounded
Terminal Block Connection Method
Push-In Connection
Terminal Block Min Wire Size
20
Terminal Block Max Wire Size
4
Terminal Block Amperage
76 Amp
Component
Terminal Block
Manufacturer
Phoenix Contact
Sub Component
Feed-Through Terminal Block
Sub Component
Multi-Conductor Terminal Block
Features
The Push-in connection terminal blocks are characterized by the system features of the CLIPLINE complete system and by easy and tool-free wiring of conductors with ferrules or solid conductors
The compact design and front connection enable wiring in a confined space
In addition to the testing option in the double function shaft, all terminal blocks provide an additional test pick-off
Tested for railway applications
Downloads
Phoenix 3208773 CAD data International.dxfPhoenix 3208773 CAD data International.pdfPhoenix 3208773 CAD data International.stpPhoenix 3208773 Certification English.pdfPhoenix 3208773 Certification International.pdfPhoenix 3208773 Manufacturers declaration International-2.pdfPhoenix 3208773 Manufacturers declaration International-3.pdfPhoenix 3208773 Manufacturers declaration International.pdfPhoenix 3208773 Safety note English.pdfPhoenix 3208773 Tender Text English.zipPhoenix 3208773 User instructions for the Ex Area International.pdf
