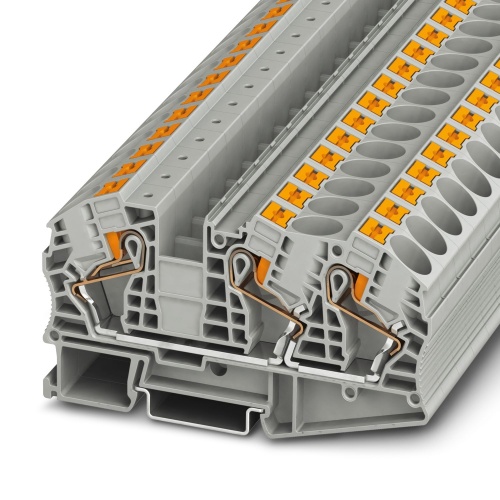

Phoenix Contact 3208760 Feed-through terminal block PT 16-TWIN N
Normally In Stock
Code: 42300
PT 16-TWIN N Phoenix Contact 3208760 Feed Through Terminal Block - PT 16-TWIN N Push-In Connection 1 Level 12.2 mm with 3 Connections. Not Grounded, Not Fused Gray. 1000 V, 85 A max rating.
Condition: New
Usually Ships Same day or Next Day$6.94
Sale Price
$5.78
MUST BUY IN PACKS OF 25
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 3208760 The feed-through terminal block has a nominal voltage of 1000V and can handle a nominal current of 76A, accommodating up to three connections made via push-in connection. The rated cross-sectional area is 16mm2, with acceptable dimensions ranging from 0.5mm2-25mm2, while the mounting type is NS35/7.5 or NS35/15 and has a gray color.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Voltage Rating
1000 Volt
Terminal Block Fused
Not Fused
Terminal Block Width
12.2 mm
Terminal Block Number of Levels
1
Terminal Block Number of Connections
3
Terminal Block Component Color
Gray
Terminal Block Grounded
Not Grounded
Terminal Block Connection Method
Push-In Connection
Terminal Block Min Wire Size
20
Terminal Block Max Wire Size
4
Terminal Block Amperage
76 Amp
Component
Terminal Block
Manufacturer
Phoenix Contact
Sub Component
Feed-Through Terminal Block
Sub Component
Multi-Conductor Terminal Block
Features
The compact design and front connection enable wiring in a confined space
In addition to the testing option in the double function shaft, all terminal blocks provide an additional test pick-off

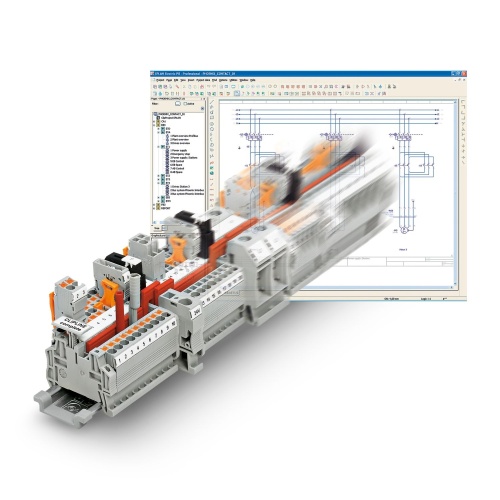

The Push-in connection terminal blocks are characterized by the system features of the CLIPLINE complete system and by easy and tool-free wiring of conductors with ferrules or solid conductors
Tested for railway applications
