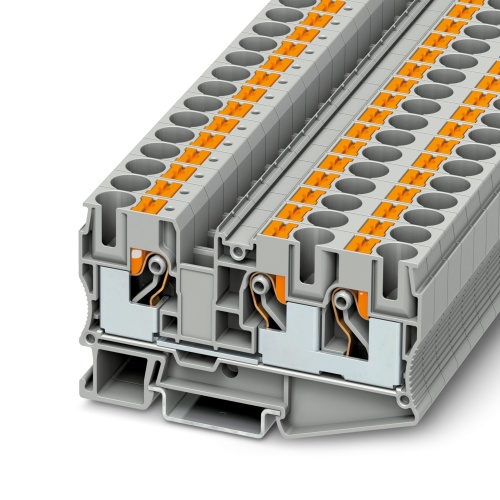

Phoenix Contact 3208746 Feed-through terminal block PT 10-TWIN
Normally In Stock
Code: 42298
PT 10-TWIN Phoenix Contact 3208746 Feed Through Terminal Block - PT 10-TWIN Push-In Connection 1 Level 10.2 mm with 3 Connections. Not Grounded, Not Fused Gray. 1000 V, 70 A max rating.
Condition: New
Usually Ships Same day or Next Day$7.63
Sale Price
$6.36
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 3208746 The feed-through terminal block has a nominal voltage of 1000 V and can handle up to 57 A of current, with three connections available via push-in method. The rated cross-section is 10 mm2, spanning from 0.5 mm2 to 16 mm2, while it can be mounted in two different configurations, NS 35/7.5 and NS 35/15, and features a gray coloration.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Voltage Rating
1000 Volt
Terminal Block Fused
Not Fused
Terminal Block Width
10.2 mm
Terminal Block Number of Levels
1
Terminal Block Number of Connections
3
Terminal Block Component Color
Gray
Terminal Block Grounded
Not Grounded
Terminal Block Amperage
57 Amp
Terminal Block Connection Method
Push-In Connection
Terminal Block Min Wire Size
20
Terminal Block Max Wire Size
6
Component
Terminal Block
Manufacturer
Phoenix Contact
Sub Component
Feed-Through Terminal Block
Sub Component
Multi-Conductor Terminal Block
Features

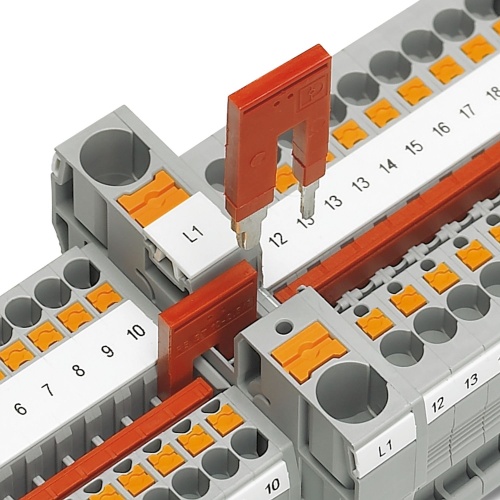

In addition to the testing option in the double function shaft, all terminal blocks provide an additional test pick-off
The compact design and front connection enable wiring in a confined space
The Push-in connection terminal blocks are characterized by the system features of the CLIPLINE complete system and by easy and tool-free wiring of conductors with ferrules or solid conductors
Tested for railway applications
