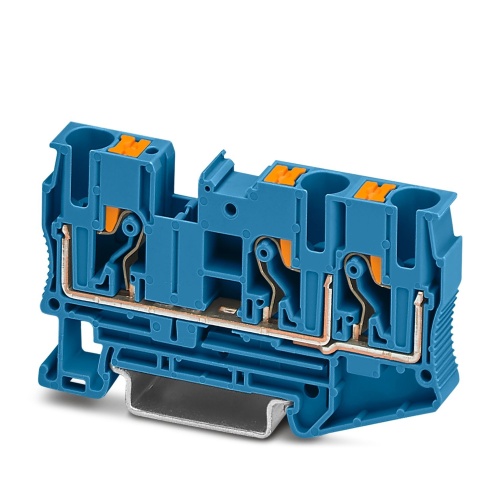

Phoenix Contact 3211485 Feed-through terminal block PT 6-TWIN BU
Normally In Stock
Code: 42295
PT 6-TWIN BU Phoenix Contact 3211485 Feed Through Terminal Block - PT 6-TWIN BU Push-In Connection 1 Level 8.2 mm with 3 Connections. Not Grounded, Not Fused Blue. 1000 V, 52 A max rating.
Condition: New
Usually Ships Same day or Next Day$5.06
Sale Price
$4.22
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 3211485 A feed-through terminal block features a nominal voltage of 1000 V and a maximum current capacity of 41 A, allowing for three connection points utilizing push-in connections with cross-sectional ratings ranging from 0.5 to 10 mm2, secured by various mounting types including NS 35/7.5 and NS 35/15, distinguished by their blue coloration.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Voltage Rating
1000 Volt
Terminal Block Fused
Not Fused
Terminal Block Width
8.2 mm
Terminal Block Number of Levels
1
Terminal Block Number of Connections
3
Terminal Block Component Color
Blue
Terminal Block Grounded
Not Grounded
Terminal Block Connection Method
Push-In Connection
Terminal Block Max Wire Size
8
Terminal Block Min Wire Size
20
Terminal Block Amperage
41 Amp
Component
Terminal Block
Manufacturer
Phoenix Contact
Sub Component
Feed-Through Terminal Block
Sub Component
Multi-Conductor Terminal Block
Features
The Push-in connection terminal blocks are characterized by the system features of the CLIPLINE complete system and by easy and tool-free wiring of conductors with ferrules or solid conductors
The compact design and front connection enable wiring in a confined space
In addition to the testing option in the double function shaft, all terminal blocks provide an additional test pick-off
Tested for railway applications
Downloads
Phoenix 3211485 CAD data International.dxfPhoenix 3211485 CAD data International.pdfPhoenix 3211485 CAD data International.stpPhoenix 3211485 Certification English.pdfPhoenix 3211485 Certification International.pdfPhoenix 3211485 Manufacturers declaration International-2.pdfPhoenix 3211485 Manufacturers declaration International-3.pdfPhoenix 3211485 Manufacturers declaration International.pdfPhoenix 3211485 Safety note English.pdfPhoenix 3211485 Tender Text English.zipPhoenix 3211485 User instructions for the Ex Area International.pdf
