Code: 42293

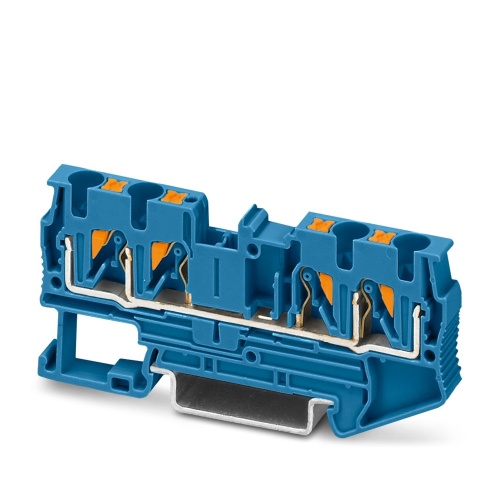

Phoenix Contact 3211802 Feed-through terminal block PT 4-QUATTRO BU
Normally In Stock
PT 4-QUATTRO BU Phoenix Contact 3211802 Feed Through Terminal Block - PT 4-QUATTRO BU Push-In Connection 1 Level 6.2 mm with 4 Connections. Not Grounded, Not Fused Blue. 800 V, 38 A max rating.
Condition: New
Usually Ships Same day or Next Day$3.38
Sale Price
$2.82
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 3211802 The feed-through terminal block has a nominal voltage of 800V and can handle up to 32A of current with 4 push-in connections. The rated cross section is 4mm2, with an acceptable range of 0.2-6mm2 for safety. This terminal block comes in two mounting types: NS35/7.5 and NS35/15, and features a blue color.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Voltage Rating
800 Volt
Terminal Block Fused
Not Fused
Terminal Block Width
6.2 mm
Terminal Block Number of Levels
1
Terminal Block Number of Connections
4
Terminal Block Component Color
Blue
Terminal Block Grounded
Not Grounded
Terminal Block Min Wire Size
24
Terminal Block Max Wire Size
10
Terminal Block Connection Method
Push-In Connection
Terminal Block Amperage
32 Amp
Component
Terminal Block
Manufacturer
Phoenix Contact
Sub Component
Feed-Through Terminal Block
Sub Component
Multi-Conductor Terminal Block
Features
In addition to the testing option in the double function shaft, all terminal blocks provide an additional test pick-off
The compact design and front connection enable wiring in a confined space
The Push-in connection terminal blocks are characterized by the system features of the CLIPLINE complete system and by easy and tool-free wiring of conductors with ferrules or solid conductors
Tested for railway applications
Downloads
Phoenix 3211802 CAD data International.dxfPhoenix 3211802 CAD data International.pdfPhoenix 3211802 CAD data International.stpPhoenix 3211802 Certification English-2.pdfPhoenix 3211802 Certification English.pdfPhoenix 3211802 Manufacturers declaration International-2.pdfPhoenix 3211802 Manufacturers declaration International-3.pdfPhoenix 3211802 Manufacturers declaration International-4.pdfPhoenix 3211802 Manufacturers declaration International.pdfPhoenix 3211802 Safety note English.pdfPhoenix 3211802 Tender Text English.zipPhoenix 3211802 User instructions for the Ex Area International.pdf
