Code: 42289

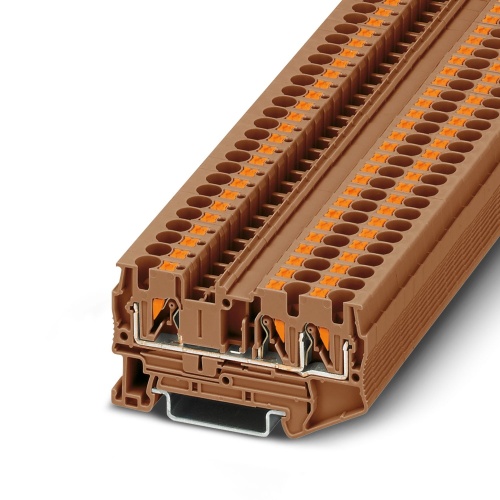

Phoenix Contact 3211254 Feed-through terminal block PT 4-TWIN BN
Normally In Stock
PT 4-TWIN BN Phoenix Contact 3211254 Feed Through Terminal Block - PT 4-TWIN BN Push-In Connection 1 Level 6.2 mm with 3 Connections. Not Grounded, Not Fused Brown. 800 V, 36 A max rating.
Condition: New
Usually Ships Same day or Next Day$2.63
Sale Price
$2.19
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 3211254 The terminal block features a push-in connection with three connections and has a rated voltage of 800 V, a nominal current capacity of 32 A, with connections ranging from 0.2 mm² to 6 mm² in cross-sectional area. It is mounted using the NS 35/7.5 and NS 35/15 types and comes in brown color.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Voltage Rating
800 Volt
Terminal Block Fused
Not Fused
Terminal Block Width
6.2 mm
Terminal Block Number of Levels
1
Terminal Block Number of Connections
3
Terminal Block Grounded
Not Grounded
Terminal Block Min Wire Size
24
Terminal Block Max Wire Size
10
Terminal Block Connection Method
Push-In Connection
Terminal Block Component Color
Brown
Terminal Block Amperage
32 Amp
Component
Terminal Block
Manufacturer
Phoenix Contact
Sub Component
Feed-Through Terminal Block
Sub Component
Multi-Conductor Terminal Block
Features
The compact design and front connection enable wiring in a confined space
In addition to the testing option in the double function shaft, all terminal blocks provide an additional test pick-off
The Push-in connection terminal blocks are characterized by the system features of the CLIPLINE complete system and by easy and tool-free wiring of conductors with ferrules or solid conductors
Tested for railway applications
Downloads
Phoenix 3211254 CAD data International.dxfPhoenix 3211254 CAD data International.pdfPhoenix 3211254 CAD data International.stpPhoenix 3211254 Certification English-2.pdfPhoenix 3211254 Certification English.pdfPhoenix 3211254 Manufacturers declaration International-2.pdfPhoenix 3211254 Manufacturers declaration International-3.pdfPhoenix 3211254 Manufacturers declaration International-4.pdfPhoenix 3211254 Manufacturers declaration International-5.pdfPhoenix 3211254 Manufacturers declaration International.pdfPhoenix 3211254 Safety note English.pdfPhoenix 3211254 Tender Text English.zipPhoenix 3211254 User instructions for the Ex Area International.pdf
