Images are for illustration only and may not reflect the actual product. Refer to the description or specs.

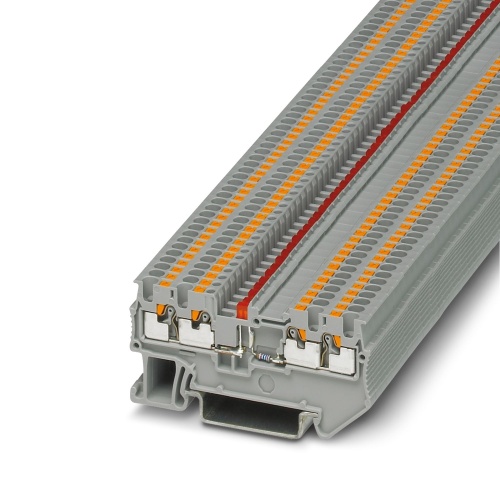

Phoenix Contact 3210280 Feed-through terminal block PT 2,5-QUATTRO-LA 24 RD
Normally In Stock
Code: 42286
PT 2,5-QUATTRO-LA 24 RD Phoenix Contact 3210280 Feed Through Terminal Block - PT 2,5-QUATTRO-LA 24 RD Push-In Connection 1 Level 5.2 mm with 4 Connections. Not Grounded, Not Fused Gray. 24 V, 10 mA max rating.
Condition: New
Usually Ships Same day or Next Day$7.25
Sale Price
$6.04
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description

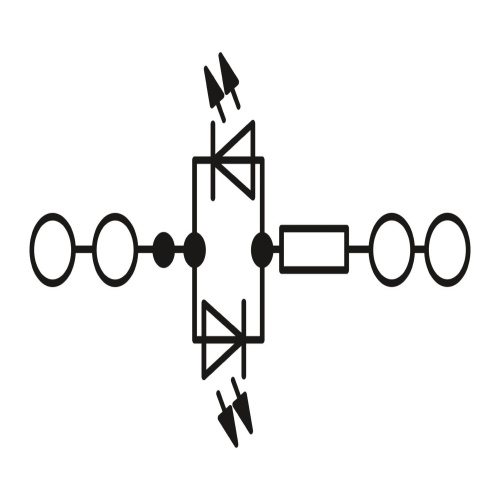

Phoenix Contact 3210280 A feed-through terminal block features a disconnected current bar, resistor, and red LED, suitable for a nominal voltage of 24V and a low nominal current of 0.01A. The connection method is push-in, with four connections available. The rated cross-sectional area ranges from 0.14mm² to 4mm², depending on the level, and is mounted using an NS35/7.5 or NS35/15 system, with a color scheme of gray.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Voltage Rating
24 Volt
Terminal Block Fused
Not Fused
Terminal Block Width
5.2 mm
Terminal Block Number of Levels
1
Terminal Block Number of Connections
4
Terminal Block Component Color
Gray
Terminal Block Grounded
Not Grounded
Terminal Block Max Wire Size
12
Terminal Block Min Wire Size
26
Terminal Block Connection Method
Push-In Connection
Component
Terminal Block
Manufacturer
Phoenix Contact
Terminal Block Amperage
10 mAmp
Sub Component
Feed-Through Terminal Block
Sub Component
Multi-Conductor Terminal Block
Features
The Push-in connection terminal blocks are characterized by the system features of the CLIPLINE complete system and by easy and tool-free wiring of conductors with ferrules or solid conductors
The compact design and front connection enable wiring in a confined space
In addition to the testing option in the double function shaft, all terminal blocks provide an additional test pick-off
