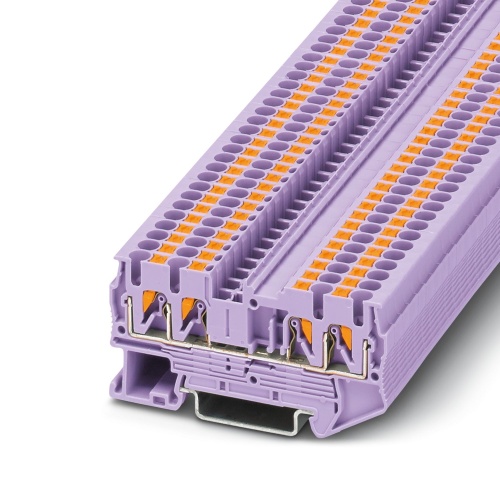

Phoenix Contact 1106767 Feed-through terminal block PT 2,5-QUATTRO VT
Normally In Stock
Code: 42284
PT 2,5-QUATTRO VT Phoenix Contact 1106767 Feed Through Terminal Block - PT 2,5-QUATTRO VT Push-In Connection 1 Level 5.2 mm with 4 Connections. Not Grounded, Not Fused Violet. 800 V, 28 A max rating.
Condition: New
Usually Ships Same day or Next Day$2.92
Sale Price
$2.43
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 1106767 The feed-through terminal block features a nominal voltage of 800 V and a nominal current rating of 24 A, accommodating up to four connections utilizing a push-in connection method. The rated cross-section ranges from 0.14 mm2 to 4 mm2, while the mounting type is compatible with NS 35/7.5 and NS 35/15 configurations, and it is distinguished by its distinctive violet color.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Voltage Rating
800 Volt
Terminal Block Fused
Not Fused
Terminal Block Width
5.2 mm
Terminal Block Number of Levels
1
Terminal Block Number of Connections
4
Terminal Block Grounded
Not Grounded
Terminal Block Max Wire Size
12
Terminal Block Min Wire Size
26
Terminal Block Connection Method
Push-In Connection
Terminal Block Component Color
Violet
Terminal Block Amperage
24 Amp
Component
Terminal Block
Manufacturer
Phoenix Contact
Sub Component
Feed-Through Terminal Block
Sub Component
Multi-Conductor Terminal Block
Features
The compact design and front connection enable wiring in a confined space
The Push-in connection terminal blocks are characterized by the system features of the CLIPLINE complete system and by easy and tool-free wiring of conductors with ferrules or solid conductors
In addition to the testing option in the double function shaft, all terminal blocks provide an additional test pick-off
Tested for railway applications
Downloads
Phoenix 1106767 CAD data International.dxfPhoenix 1106767 CAD data International.pdfPhoenix 1106767 CAD data International.stpPhoenix 1106767 Manufacturers declaration International-2.pdfPhoenix 1106767 Manufacturers declaration International-3.pdfPhoenix 1106767 Manufacturers declaration International.pdfPhoenix 1106767 Tender Text English.zip
