Code: 42279

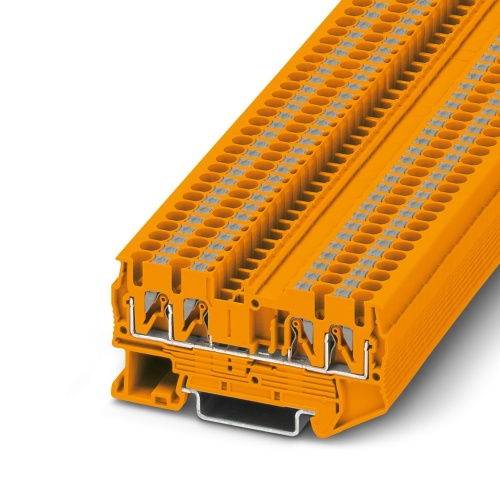

Phoenix Contact 3001373 Feed-through terminal block PT 2,5-QUATTRO OG
Normally In Stock
PT 2,5-QUATTRO OG Phoenix Contact 3001373 Feed Through Terminal Block - PT 2,5-QUATTRO OG Push-In Connection 1 Level 5.2 mm with 4 Connections. Not Grounded, Not Fused Orange. 800 V, 28 A max rating.
Condition: New
Usually Ships Same day or Next Day$3.14
Sale Price
$2.62
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 3001373 The terminal block has specific characteristics including a nominal voltage of 800V and a nominal current capacity of 24A, accommodating up to 4 connections via push-in connection method. The rated cross-section is 2.5mm², with an actual cross-sectional area range of 0.14-4mm². Mounting options include NS35/7,5 and NS35/15 types, while the terminal block itself features a bright orange color.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Voltage Rating
800 Volt
Terminal Block Fused
Not Fused
Terminal Block Width
5.2 mm
Terminal Block Number of Levels
1
Terminal Block Number of Connections
4
Terminal Block Grounded
Not Grounded
Terminal Block Max Wire Size
12
Terminal Block Min Wire Size
26
Terminal Block Connection Method
Push-In Connection
Terminal Block Component Color
Orange
Terminal Block Amperage
24 Amp
Component
Terminal Block
Manufacturer
Phoenix Contact
Sub Component
Feed-Through Terminal Block
Sub Component
Multi-Conductor Terminal Block
Features
The Push-in connection terminal blocks are characterized by the system features of the CLIPLINE complete system and by easy and tool-free wiring of conductors with ferrules or solid conductors
The compact design and front connection enable wiring in a confined space
In addition to the testing option in the double function shaft, all terminal blocks provide an additional test pick-off
Tested for railway applications
Downloads
Phoenix 3001373 CAD data International.dxfPhoenix 3001373 CAD data International.pdfPhoenix 3001373 CAD data International.stpPhoenix 3001373 Certification English-2.pdfPhoenix 3001373 Certification English.pdfPhoenix 3001373 Manufacturers declaration International-2.pdfPhoenix 3001373 Manufacturers declaration International-3.pdfPhoenix 3001373 Manufacturers declaration International-4.pdfPhoenix 3001373 Manufacturers declaration International.pdfPhoenix 3001373 Safety note English.pdfPhoenix 3001373 Tender Text English.zipPhoenix 3001373 User instructions for the Ex Area International.pdf
