Code: 42277

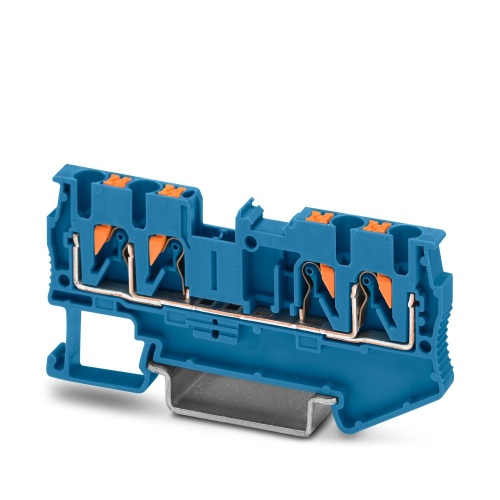

Phoenix Contact 3209581 Feed-through terminal block PT 2,5-QUATTRO BU
Normally In Stock
PT 2,5-QUATTRO BU Phoenix Contact 3209581 Feed Through Terminal Block - PT 2,5-QUATTRO BU Push-In Connection 1 Level 5.2 mm with 4 Connections. Not Grounded, Not Fused Blue. 800 V, 28 A max rating.
Condition: New
Usually Ships Same day or Next Day$2.80
Sale Price
$2.33
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 3209581 A feed-through terminal block with a nominal voltage of 800V and a nominal current capacity of 24A is designed for use with 4 connections, employing a push-in connection method. The rated cross-sectional area ranges from 2.5mm² to 4mm², while the actual cross-section varies between 0.14mm² to 4mm². This terminal block can be mounted using two different types of mounting systems, namely NS35/7,5 and NS35/15, and features a blue color scheme.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Voltage Rating
800 Volt
Terminal Block Fused
Not Fused
Terminal Block Width
5.2 mm
Terminal Block Number of Levels
1
Terminal Block Number of Connections
4
Terminal Block Component Color
Blue
Terminal Block Grounded
Not Grounded
Terminal Block Max Wire Size
12
Terminal Block Min Wire Size
26
Terminal Block Connection Method
Push-In Connection
Terminal Block Amperage
24 Amp
Component
Terminal Block
Manufacturer
Phoenix Contact
Sub Component
Feed-Through Terminal Block
Sub Component
Multi-Conductor Terminal Block
Features
In addition to the testing option in the double function shaft, all terminal blocks provide an additional test pick-off

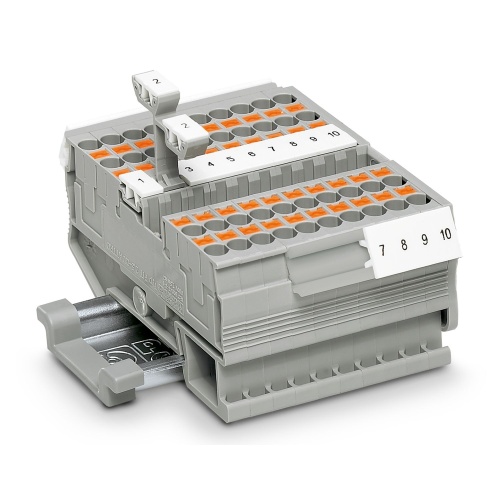

The compact design and front connection enable wiring in a confined space

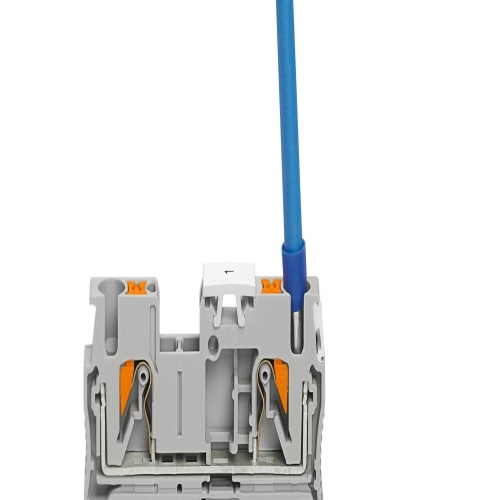

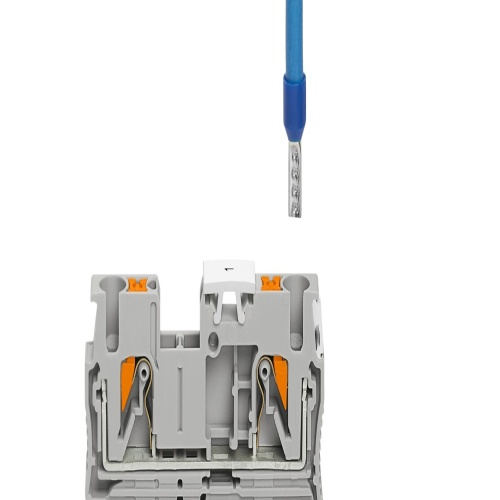

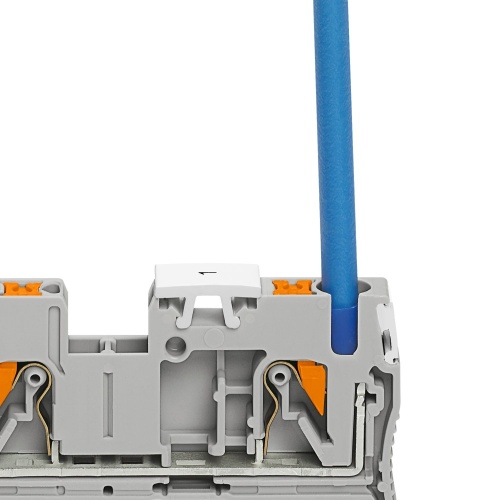

The Push-in connection terminal blocks are characterized by the system features of the CLIPLINE complete system and by easy and tool-free wiring of conductors with ferrules or solid conductors
Tested for railway applications
Downloads
Phoenix 3209581 CAD data International.dxfPhoenix 3209581 CAD data International.pdfPhoenix 3209581 CAD data International.stpPhoenix 3209581 Certification English-2.pdfPhoenix 3209581 Certification English.pdfPhoenix 3209581 Manufacturers declaration International-2.pdfPhoenix 3209581 Manufacturers declaration International-3.pdfPhoenix 3209581 Manufacturers declaration International-4.pdfPhoenix 3209581 Manufacturers declaration International-5.pdfPhoenix 3209581 Manufacturers declaration International.pdfPhoenix 3209581 Safety note English.pdfPhoenix 3209581 Tender Text English.zipPhoenix 3209581 User instructions for the Ex Area International.pdf
