Code: 42271

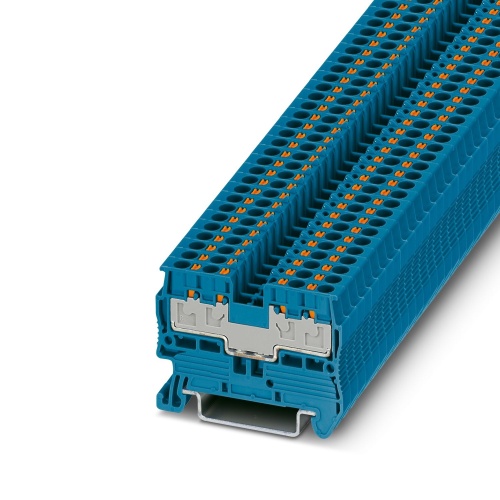

Phoenix Contact 3211022 Feed-through terminal block PT 2,5/S-QUATTRO BU
Normally In Stock
PT 2,5/S-QUATTRO BU Phoenix Contact 3211022 Feed Through Terminal Block - PT 2,5/S-QUATTRO BU Push-In Connection 1 Level 5.2 mm with 4 Connections. Not Grounded, Not Fused Blue. 500 V, 22 A max rating.
Condition: New
Usually Ships Same day or Next Day$2.42
Sale Price
$2.02
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 3211022 A feed-through terminal block is available with a nominal voltage of 500 V and a maximum current rating of 17.5 A. It has four connections that can be made using the push-in connection method, with a rated cross-sectional area of 2.5 mm² and varying cross-sectional areas ranging from 0.14 mm² to 4 mm². The mounting type options include NS 35/7,5 and NS 35/15, while the terminal block has a blue color.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Voltage Rating
500 Volt
Terminal Block Fused
Not Fused
Terminal Block Width
5.2 mm
Terminal Block Number of Levels
1
Terminal Block Number of Connections
4
Terminal Block Component Color
Blue
Terminal Block Grounded
Not Grounded
Terminal Block Max Wire Size
12
Terminal Block Min Wire Size
26
Terminal Block Connection Method
Push-In Connection
Terminal Block Amperage
17.5 Amp
Component
Terminal Block
Manufacturer
Phoenix Contact
Sub Component
Feed-Through Terminal Block
Sub Component
Multi-Conductor Terminal Block
Features
The compact design and front connection enable wiring in a confined space
In addition to the testing option in the double function shaft, all terminal blocks provide an additional test pick-off
The Push-in connection terminal blocks are characterized by the system features of the CLIPLINE complete system and by easy and tool-free wiring of conductors with ferrules or solid conductors
