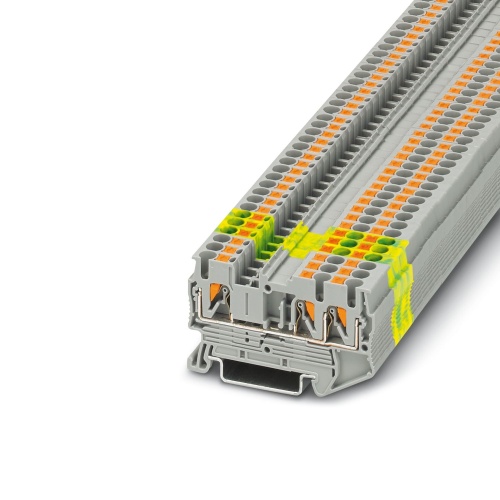

Images are for illustration only and may not reflect the actual product. Refer to the description or specs.
Code: 42268

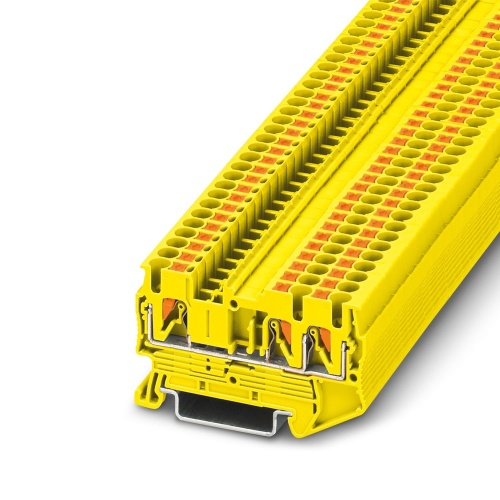

Phoenix Contact 3209553 Feed-through terminal block PT 2,5-TWIN YE
Normally In Stock
PT 2,5-TWIN YE Phoenix Contact 3209553 Feed Through Terminal Block - PT 2,5-TWIN YE Push-In Connection 1 Level 5.2 mm with 3 Connections. Not Grounded, Not Fused Yellow. 800 V, 30 A max rating.
Condition: New
Usually Ships Same day or Next Day$2.26
Sale Price
$1.88
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 3209553 The feed-through terminal block features a nominal voltage of 800V and a maximum current rating of 24A, accommodating up to three connections utilizing a push-in connection method. The rated cross-sectional area is specified as 2.5mm², with an actual range of 0.14mm²-4mm², and the terminal block is mounted using either the NS35/7,5 or NS35/15 types, while the outer casing is colored yellow.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Voltage Rating
800 Volt
Terminal Block Fused
Not Fused
Terminal Block Width
5.2 mm
Terminal Block Number of Levels
1
Terminal Block Number of Connections
3
Terminal Block Component Color
Yellow
Terminal Block Grounded
Not Grounded
Terminal Block Max Wire Size
12
Terminal Block Min Wire Size
26
Terminal Block Connection Method
Push-In Connection
Terminal Block Amperage
24 Amp
Component
Terminal Block
Manufacturer
Phoenix Contact
Sub Component
Feed-Through Terminal Block
Sub Component
Multi-Conductor Terminal Block
Features
The compact design and front connection enable wiring in a confined space
The Push-in connection terminal blocks are characterized by the system features of the CLIPLINE complete system and by easy and tool-free wiring of conductors with ferrules or solid conductors
In addition to the testing option in the double function shaft, all terminal blocks provide an additional test pick-off
Tested for railway applications
Downloads
Phoenix 3209553 CAD data International.dxfPhoenix 3209553 CAD data International.pdfPhoenix 3209553 CAD data International.stpPhoenix 3209553 Certification English-2.pdfPhoenix 3209553 Certification English.pdfPhoenix 3209553 Manufacturers declaration International-2.pdfPhoenix 3209553 Manufacturers declaration International-3.pdfPhoenix 3209553 Manufacturers declaration International.pdfPhoenix 3209553 Safety note English.pdfPhoenix 3209553 Tender Text English.zipPhoenix 3209553 User instructions for the Ex Area International.pdf
