Code: 42267

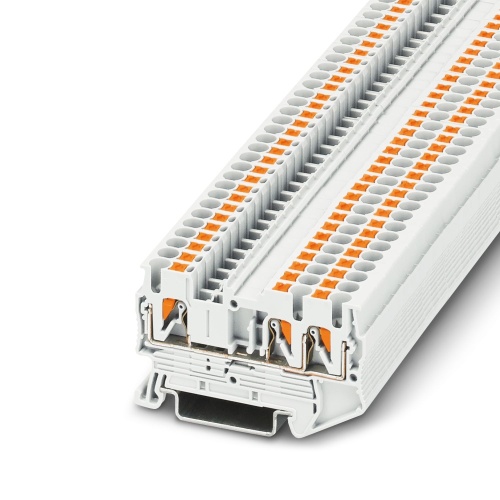

Phoenix Contact 3209550 Feed-through terminal block PT 2,5-TWIN WH
Normally In Stock
PT 2,5-TWIN WH Phoenix Contact 3209550 Feed Through Terminal Block - PT 2,5-TWIN WH Push-In Connection 1 Level 5.2 mm with 3 Connections. Not Grounded, Not Fused White. 800 V, 30 A max rating.
Condition: New
Usually Ships Same day or Next Day$2.26
Sale Price
$1.88
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 3209550 The feed-through terminal block features a nominal voltage of 800 V and a nominal current capacity of 24 A, accommodating three connections via push-in connection method. The rated cross-sectional area is 2.5 mm², with actual cross-sections ranging from 0.14 to 4 mm², and it is mounted using the NS 35/7.5 and NS 35/15 types, with a white color.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Voltage Rating
800 Volt
Terminal Block Fused
Not Fused
Terminal Block Width
5.2 mm
Terminal Block Number of Levels
1
Terminal Block Number of Connections
3
Terminal Block Grounded
Not Grounded
Terminal Block Max Wire Size
12
Terminal Block Min Wire Size
26
Terminal Block Connection Method
Push-In Connection
Terminal Block Component Color
White
Terminal Block Amperage
24 Amp
Component
Terminal Block
Manufacturer
Phoenix Contact
Sub Component
Feed-Through Terminal Block
Sub Component
Multi-Conductor Terminal Block
Features
The Push-in connection terminal blocks are characterized by the system features of the CLIPLINE complete system and by easy and tool-free wiring of conductors with ferrules or solid conductors
In addition to the testing option in the double function shaft, all terminal blocks provide an additional test pick-off
The compact design and front connection enable wiring in a confined space
Tested for railway applications
Downloads
Phoenix 3209550 CAD data International.dxfPhoenix 3209550 CAD data International.pdfPhoenix 3209550 CAD data International.stpPhoenix 3209550 Certification English-2.pdfPhoenix 3209550 Certification English.pdfPhoenix 3209550 Manufacturers declaration International-2.pdfPhoenix 3209550 Manufacturers declaration International-3.pdfPhoenix 3209550 Manufacturers declaration International.pdfPhoenix 3209550 Safety note English.pdfPhoenix 3209550 Tender Text English.zipPhoenix 3209550 User instructions for the Ex Area International.pdf
