Code: 42265

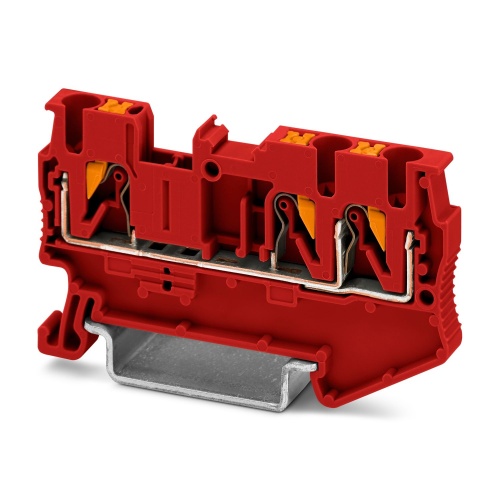

Phoenix Contact 3211223 Feed-through terminal block PT 2,5-TWIN RD
Normally In Stock
PT 2,5-TWIN RD Phoenix Contact 3211223 Feed Through Terminal Block - PT 2,5-TWIN RD Push-In Connection 1 Level 5.2 mm with 3 Connections. Not Grounded, Not Fused Red. 800 V, 30 A max rating.
Condition: New
Usually Ships Same day or Next Day$2.11
Sale Price
$1.76
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 3211223 The feed-through terminal block has a nominal voltage of 800V and a maximum current rating of 24A, allowing for connections to be made via a push-in method. It features three connection points, with rated cross sections ranging from 0.14mm² to 4mm², while its mounting type is the NS35/7.5 or NS35/15 configurations, and it comes in red color.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Voltage Rating
800 Volt
Terminal Block Fused
Not Fused
Terminal Block Width
5.2 mm
Terminal Block Number of Levels
1
Terminal Block Number of Connections
3
Terminal Block Grounded
Not Grounded
Terminal Block Max Wire Size
12
Terminal Block Min Wire Size
26
Terminal Block Connection Method
Push-In Connection
Terminal Block Component Color
Red
Terminal Block Amperage
24 Amp
Component
Terminal Block
Manufacturer
Phoenix Contact
Sub Component
Feed-Through Terminal Block
Sub Component
Multi-Conductor Terminal Block
Features
The Push-in connection terminal blocks are characterized by the system features of the CLIPLINE complete system and by easy and tool-free wiring of conductors with ferrules or solid conductors
In addition to the testing option in the double function shaft, all terminal blocks provide an additional test pick-off
The compact design and front connection enable wiring in a confined space
Downloads
Phoenix 3211223 CAD data International.dxfPhoenix 3211223 CAD data International.pdfPhoenix 3211223 CAD data International.stpPhoenix 3211223 Certification English-2.pdfPhoenix 3211223 Certification English.pdfPhoenix 3211223 Manufacturers declaration International-2.pdfPhoenix 3211223 Manufacturers declaration International-3.pdfPhoenix 3211223 Manufacturers declaration International.pdfPhoenix 3211223 Safety note English.pdfPhoenix 3211223 Tender Text English.zipPhoenix 3211223 User instructions for the Ex Area International.pdf
