Code: 42263

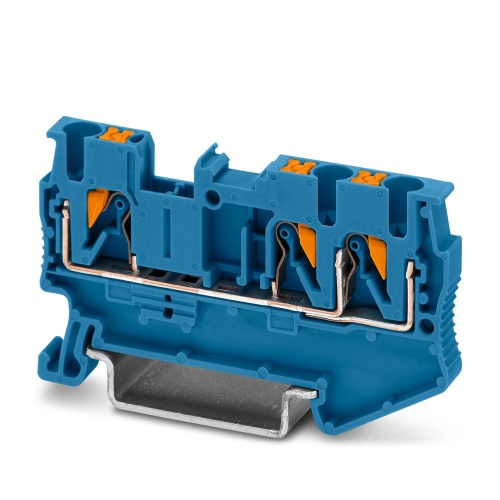

Phoenix Contact 3209552 Feed-through terminal block PT 2,5-TWIN BU
Normally In Stock
PT 2,5-TWIN BU Phoenix Contact 3209552 Feed Through Terminal Block - PT 2,5-TWIN BU Push-In Connection 1 Level 5.2 mm with 3 Connections. Not Grounded, Not Fused Blue. 800 V, 28 A max rating.
Condition: New
Usually Ships Same day or Next Day$1.97
Sale Price
$1.64
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 3209552 A feed-through terminal block with a nominal voltage of 800V and a maximum current capacity of 24A features push-in connections and comes in three different configurations. The cross-sectional area ranges from 0.14mm² to 4mm², while the rated cable size is 2.5mm². This terminal block can be mounted using two standard mounting types: NS35/7,5 and NS35/15. Additionally, it has a blue color scheme available for various applications.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Voltage Rating
800 Volt
Terminal Block Fused
Not Fused
Terminal Block Width
5.2 mm
Terminal Block Number of Levels
1
Terminal Block Number of Connections
3
Terminal Block Component Color
Blue
Terminal Block Grounded
Not Grounded
Terminal Block Max Wire Size
12
Terminal Block Min Wire Size
26
Terminal Block Connection Method
Push-In Connection
Terminal Block Amperage
24 Amp
Component
Terminal Block
Manufacturer
Phoenix Contact
Sub Component
Feed-Through Terminal Block
Sub Component
Multi-Conductor Terminal Block
Features
In addition to the testing option in the double function shaft, all terminal blocks provide an additional test pick-off
The compact design and front connection enable wiring in a confined space

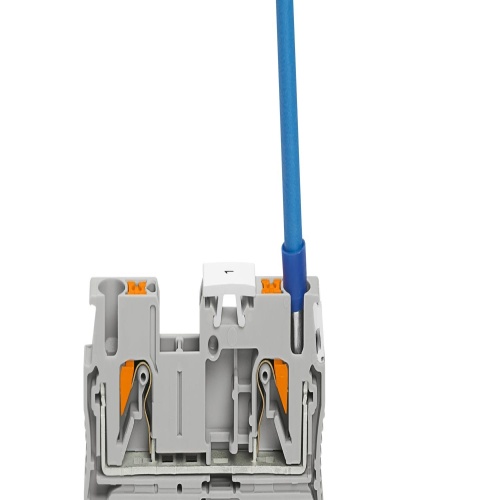

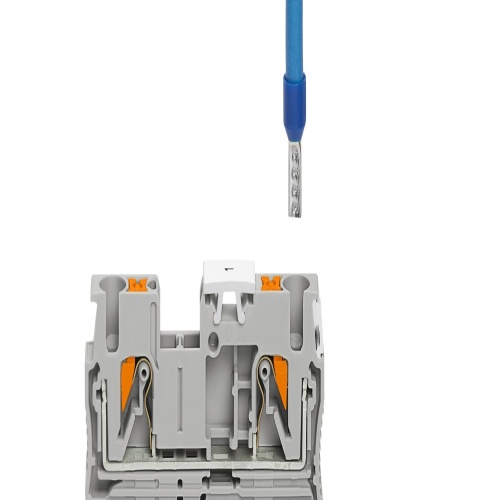

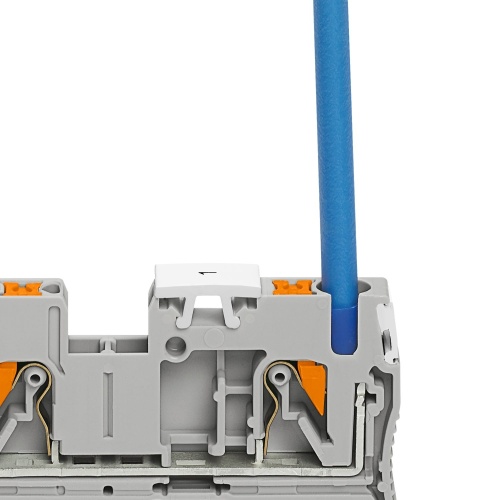

The Push-in connection terminal blocks are characterized by the system features of the CLIPLINE complete system and by easy and tool-free wiring of conductors with ferrules or solid conductors
Tested for railway applications
