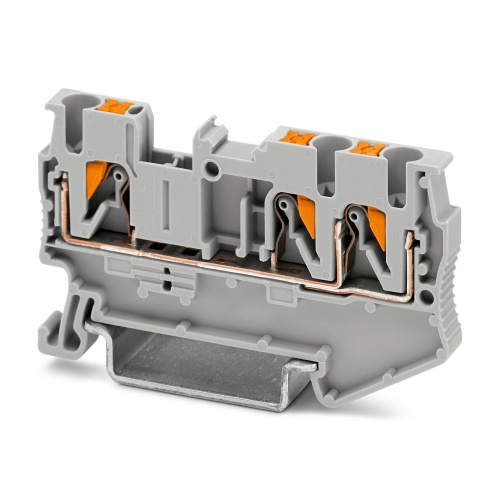

Phoenix Contact 3209549 Feed-through terminal block PT 2,5-TWIN
Normally In Stock
Code: 42262
PT 2,5-TWIN Phoenix Contact 3209549 Feed Through Terminal Block - PT 2,5-TWIN Push-In Connection 1 Level 5.2 mm with 3 Connections. Not Grounded, Not Fused Gray. 800 V, 28 A max rating.
Condition: New
Usually Ships Same day or Next Day$1.97
Sale Price
$1.64
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 3209549 The terminal block features a push-in connection method with 3 connections and is rated for a nominal voltage of 800V and a nominal current of 24A. The cross-sectional area ranges from 0.14mm² to 4mm², while the rated section size is 2.5mm². The mounting type includes NS35/7.5 and NS35/15, with a standard color of gray.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Voltage Rating
800 Volt
Terminal Block Fused
Not Fused
Terminal Block Width
5.2 mm
Terminal Block Number of Levels
1
Terminal Block Number of Connections
3
Terminal Block Component Color
Gray
Terminal Block Grounded
Not Grounded
Terminal Block Max Wire Size
12
Terminal Block Min Wire Size
26
Terminal Block Connection Method
Push-In Connection
Terminal Block Amperage
24 Amp
Component
Terminal Block
Manufacturer
Phoenix Contact
Sub Component
Feed-Through Terminal Block
Sub Component
Multi-Conductor Terminal Block
Features

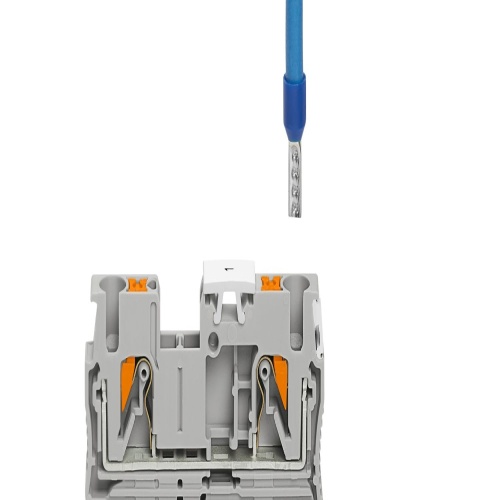

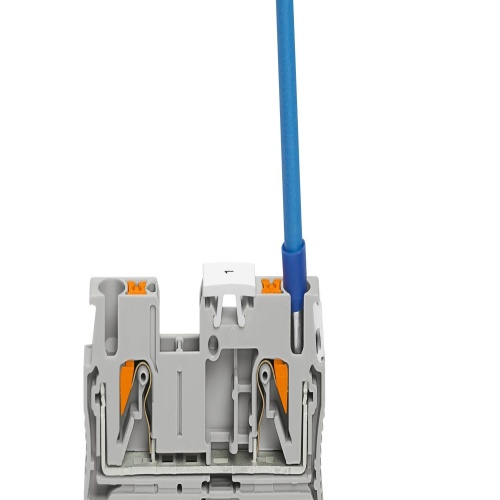

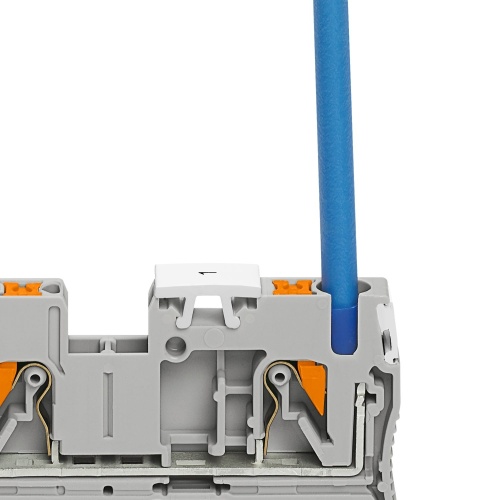

The Push-in connection terminal blocks are characterized by the system features of the CLIPLINE complete system and by easy and tool-free wiring of conductors with ferrules or solid conductors
The compact design and front connection enable wiring in a confined space
In addition to the testing option in the double function shaft, all terminal blocks provide an additional test pick-off
Tested for railway applications
Downloads
Phoenix 3209549 CAD data International.dxfPhoenix 3209549 CAD data International.pdfPhoenix 3209549 CAD data International.stpPhoenix 3209549 Certification English-2.pdfPhoenix 3209549 Certification English.pdfPhoenix 3209549 Manufacturers declaration International-2.pdfPhoenix 3209549 Manufacturers declaration International-3.pdfPhoenix 3209549 Manufacturers declaration International.pdfPhoenix 3209549 Product Information English.pdfPhoenix 3209549 Safety note English.pdfPhoenix 3209549 Tender Text English.zipPhoenix 3209549 User instructions for the Ex Area International.pdf
