Code: 42259

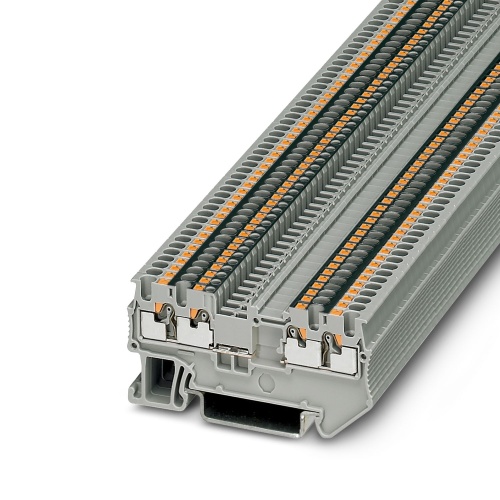

Phoenix Contact 3208359 Feed-through terminal block PT 1,5/S-QUATTRO-U
Normally In Stock
PT 1,5/S-QUATTRO-U Phoenix Contact 3208359 Feed Through Terminal Block - PT 1,5/S-QUATTRO-U Push-In Connection 1 Level 3.5 mm with 4 Connections. Not Grounded, Not Fused Gray. 500 V, 15 A max rating.
Condition: New
Usually ships within 7-14 days. Call for ship time.$3.23
Sale Price
$2.69
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 3208359 The feed-through terminal block has a nominal voltage of 500 V and a maximum current rating of 15 A. It accommodates up to 4 connections, utilizing push-in connection methods. The cross-section is rated for 1.5 mm2 with a secondary level featuring a smaller 0.14-1.5 mm2 area, and it can be mounted using the NS 35/7.5 or NS 35/15 mounting types, available in gray color.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Voltage Rating
500 Volt
Terminal Block Fused
Not Fused
Terminal Block Number of Levels
1
Terminal Block Number of Connections
4
Terminal Block Width
3.5 mm
Terminal Block Component Color
Gray
Terminal Block Grounded
Not Grounded
Terminal Block Min Wire Size
26
Terminal Block Connection Method
Push-In Connection
Terminal Block Max Wire Size
14
Terminal Block Amperage
15 Amp
Component
Terminal Block
Manufacturer
Phoenix Contact
Sub Component
Feed-Through Terminal Block
Sub Component
Multi-Conductor Terminal Block
Features
In addition to the testing option in the double function shaft, all terminal blocks provide an additional test pick-off
The compact design and front connection enable wiring in a confined space
The Push-in connection terminal blocks are characterized by the system features of the CLIPLINE complete system and by easy and tool-free wiring of conductors with ferrules or solid conductors
Downloads
Phoenix 3208359 CAD data International.dxfPhoenix 3208359 CAD data International.pdfPhoenix 3208359 CAD data International.stpPhoenix 3208359 Manufacturers declaration International-2.pdfPhoenix 3208359 Manufacturers declaration International.pdfPhoenix 3208359 Safety note English.pdfPhoenix 3208359 Tender Text English.zip
