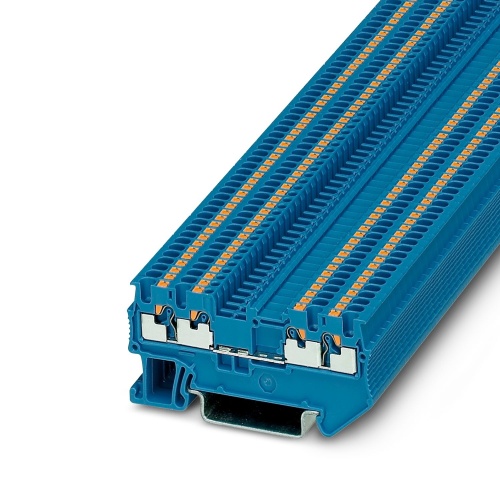

Phoenix Contact 3208208 Feed-through terminal block PT 1,5/S-QUATTRO BU
Normally In Stock
Code: 42256
PT 1,5/S-QUATTRO BU Phoenix Contact 3208208 Feed Through Terminal Block - PT 1,5/S-QUATTRO BU Push-In Connection 1 Level 3.5 mm with 4 Connections. Not Grounded, Not Fused Blue. 500 V, 17.5 A max rating.
Condition: New
Usually Ships Same day or Next Day$2.14
Sale Price
$1.78
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 3208208 The terminal block features a feed-through design with a nominal voltage of 500 V and a maximum current rating of 17.5 A, accommodating four connections via push-in connections. The cross-sectional area ranges from 0.14 mm² to 1.5 mm², with rated sizes for each level. It is mounted using the NS 35/7,5 and NS 35/15 types, with a blue color scheme.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Voltage Rating
500 Volt
Terminal Block Fused
Not Fused
Terminal Block Number of Levels
1
Terminal Block Number of Connections
4
Terminal Block Width
3.5 mm
Terminal Block Component Color
Blue
Terminal Block Grounded
Not Grounded
Terminal Block Min Wire Size
26
Terminal Block Connection Method
Push-In Connection
Terminal Block Max Wire Size
14
Terminal Block Amperage
17.5 Amp
Component
Terminal Block
Manufacturer
Phoenix Contact
Sub Component
Feed-Through Terminal Block
Sub Component
Multi-Conductor Terminal Block
Features
The compact design and front connection enable wiring in a confined space
The Push-in connection terminal blocks are characterized by the system features of the CLIPLINE complete system and by easy and tool-free wiring of conductors with ferrules or solid conductors
In addition to the testing option in the double function shaft, all terminal blocks provide an additional test pick-off
Tested for railway applications
Downloads
Phoenix 3208208 CAD data International.dxfPhoenix 3208208 User instructions for the Ex Area International.pdfPhoenix 3208208 Tender Text English.zipPhoenix 3208208 Safety note English.pdfPhoenix 3208208 Product Information English.pdfPhoenix 3208208 Manufacturers declaration International.pdfPhoenix 3208208 Manufacturers declaration International-4.pdfPhoenix 3208208 Manufacturers declaration International-3.pdfPhoenix 3208208 Manufacturers declaration International-2.pdfPhoenix 3208208 Certification International.pdfPhoenix 3208208 Certification English.pdfPhoenix 3208208 CAD data International.stpPhoenix 3208208 CAD data International.pdf
