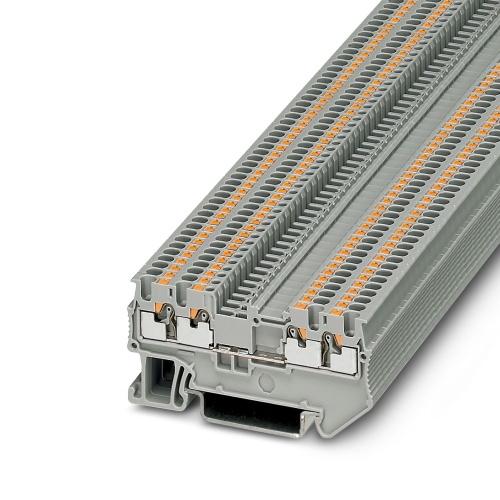

Phoenix Contact 3208197 Feed-through terminal block PT 1,5/S-QUATTRO
Normally In Stock
Code: 42255
PT 1,5/S-QUATTRO Phoenix Contact 3208197 Feed Through Terminal Block - PT 1,5/S-QUATTRO Push-In Connection 1 Level 3.5 mm with 4 Connections. Not Grounded, Not Fused Gray. 500 V, 17.5 A max rating.
Condition: New
Usually Ships Same day or Next Day$2.14
Sale Price
$1.78
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 3208197 A feed-through terminal block with a nominal voltage of 500 V and a nominal current capacity of 17.5 A is available, featuring four push-in connections. The rated cross-sectional area is 1.5 mm², with an actual cross-sectional area ranging from 0.14 to 1.5 mm². This terminal block is mounted using the NS 35/7.5 and NS 35/15 systems, and its color is gray.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Voltage Rating
500 Volt
Terminal Block Fused
Not Fused
Terminal Block Number of Levels
1
Terminal Block Number of Connections
4
Terminal Block Width
3.5 mm
Terminal Block Component Color
Gray
Terminal Block Grounded
Not Grounded
Terminal Block Min Wire Size
26
Terminal Block Connection Method
Push-In Connection
Terminal Block Max Wire Size
14
Terminal Block Amperage
17.5 Amp
Component
Terminal Block
Manufacturer
Phoenix Contact
Sub Component
Feed-Through Terminal Block
Sub Component
Multi-Conductor Terminal Block
Features
In addition to the testing option in the double function shaft, all terminal blocks provide an additional test pick-off
The compact design and front connection enable wiring in a confined space

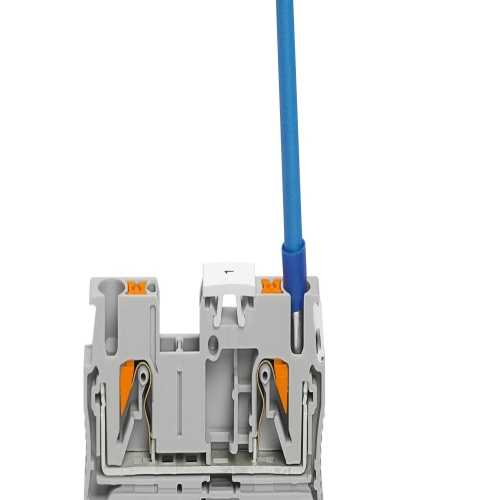

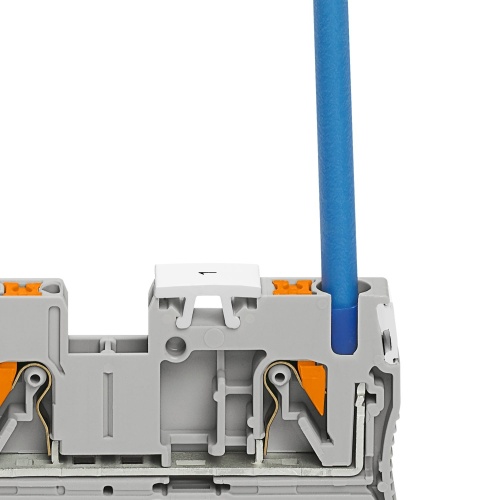

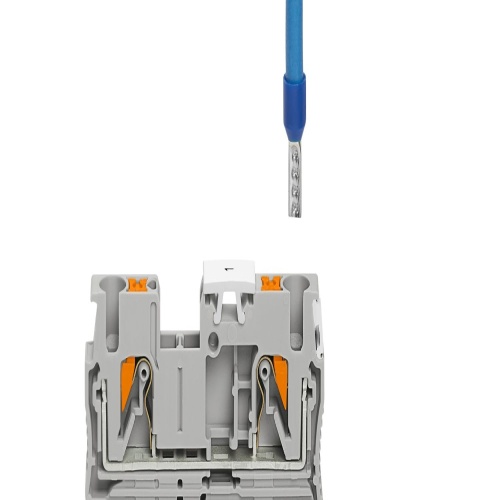

The Push-in connection terminal blocks are characterized by the system features of the CLIPLINE complete system and by easy and tool-free wiring of conductors with ferrules or solid conductors
Tested for railway applications
