Code: 42253

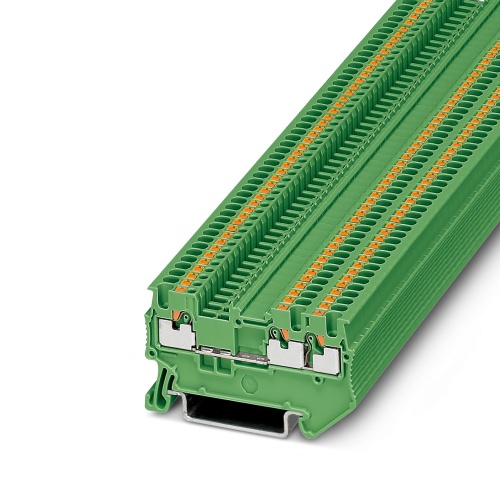

Phoenix Contact 3208160 Feed-through terminal block PT 1,5/S-TWIN GN
Normally In Stock
PT 1,5/S-TWIN GN Phoenix Contact 3208160 Feed Through Terminal Block - PT 1,5/S-TWIN GN Push-In Connection 1 Level 3.5 mm with 3 Connections. Not Grounded, Not Fused Green. 500 V, 17.5 A max rating.
Condition: New
Usually Ships Same day or Next Day$1.99
Sale Price
$1.66
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 3208160 A feed-through terminal block has a nominal voltage of 500 V and a nominal current rating of 17.5 A, accommodating three connections via push-in connections, with rated cross sections ranging from 0.14 to 1.5 mm2. The mounting type is NS 35/7,5 or NS 35/15, and the color is green.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Voltage Rating
500 Volt
Terminal Block Fused
Not Fused
Terminal Block Number of Levels
1
Terminal Block Width
3.5 mm
Terminal Block Number of Connections
3
Terminal Block Grounded
Not Grounded
Terminal Block Min Wire Size
26
Terminal Block Connection Method
Push-In Connection
Terminal Block Max Wire Size
14
Terminal Block Component Color
Green
Terminal Block Amperage
17.5 Amp
Component
Terminal Block
Manufacturer
Phoenix Contact
Sub Component
Feed-Through Terminal Block
Sub Component
Multi-Conductor Terminal Block
Features
In addition to the testing option in the double function shaft, all terminal blocks provide an additional test pick-off
The Push-in connection terminal blocks are characterized by the system features of the CLIPLINE complete system and by easy and tool-free wiring of conductors with ferrules or solid conductors
The compact design and front connection enable wiring in a confined space
Tested for railway applications
Downloads
Phoenix 3208160 CAD data International.dxfPhoenix 3208160 CAD data International.pdfPhoenix 3208160 CAD data International.stpPhoenix 3208160 Certification English.pdfPhoenix 3208160 Certification International.pdfPhoenix 3208160 Manufacturers declaration International-2.pdfPhoenix 3208160 Manufacturers declaration International-3.pdfPhoenix 3208160 Manufacturers declaration International-4.pdfPhoenix 3208160 Manufacturers declaration International.pdfPhoenix 3208160 Safety note English.pdfPhoenix 3208160 Tender Text English.zipPhoenix 3208160 User instructions for the Ex Area International.pdf
