Code: 42250

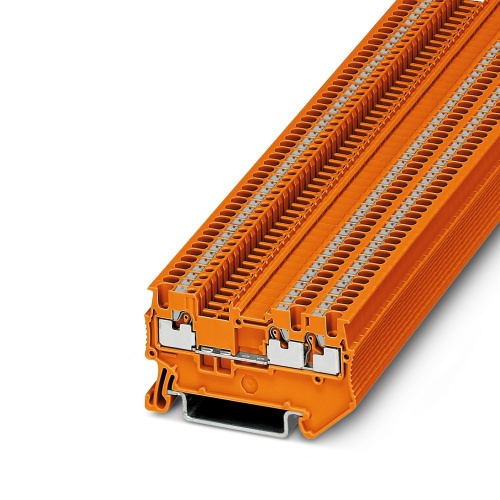

Phoenix Contact 3208157 Feed-through terminal block PT 1,5/S-TWIN OG
Normally In Stock
PT 1,5/S-TWIN OG Phoenix Contact 3208157 Feed Through Terminal Block - PT 1,5/S-TWIN OG Push-In Connection 1 Level 3.5 mm with 3 Connections. Not Grounded, Not Fused Orange. 500 V, 17.5 A max rating.
Condition: New
Usually Ships Same day or Next Day$1.99
Sale Price
$1.66
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 3208157 A feed-through terminal block features a nominal voltage of 500 V and a maximum current capacity of 17.5 A, accommodating three connections through push-in connections. The rated cross-sectional area varies from 0.14 mm2 to 1.5 mm2 per level, with multiple levels supported, and is mounted using the NS 35/7.5 or NS 35/15 mounting types, with an orange color scheme.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Voltage Rating
500 Volt
Terminal Block Fused
Not Fused
Terminal Block Number of Levels
1
Terminal Block Width
3.5 mm
Terminal Block Number of Connections
3
Terminal Block Grounded
Not Grounded
Terminal Block Min Wire Size
26
Terminal Block Connection Method
Push-In Connection
Terminal Block Component Color
Orange
Terminal Block Max Wire Size
14
Terminal Block Amperage
17.5 Amp
Component
Terminal Block
Manufacturer
Phoenix Contact
Sub Component
Feed-Through Terminal Block
Sub Component
Multi-Conductor Terminal Block
Features
The compact design and front connection enable wiring in a confined space
In addition to the testing option in the double function shaft, all terminal blocks provide an additional test pick-off
The Push-in connection terminal blocks are characterized by the system features of the CLIPLINE complete system and by easy and tool-free wiring of conductors with ferrules or solid conductors
Tested for railway applications
Downloads
Phoenix 3208157 CAD data International.dxfPhoenix 3208157 CAD data International.pdfPhoenix 3208157 CAD data International.stpPhoenix 3208157 Certification English.pdfPhoenix 3208157 Certification International.pdfPhoenix 3208157 Manufacturers declaration International-2.pdfPhoenix 3208157 Manufacturers declaration International-3.pdfPhoenix 3208157 Manufacturers declaration International-4.pdfPhoenix 3208157 Manufacturers declaration International.pdfPhoenix 3208157 Safety note English.pdfPhoenix 3208157 Tender Text English.zipPhoenix 3208157 User instructions for the Ex Area International.pdf
