Code: 42090

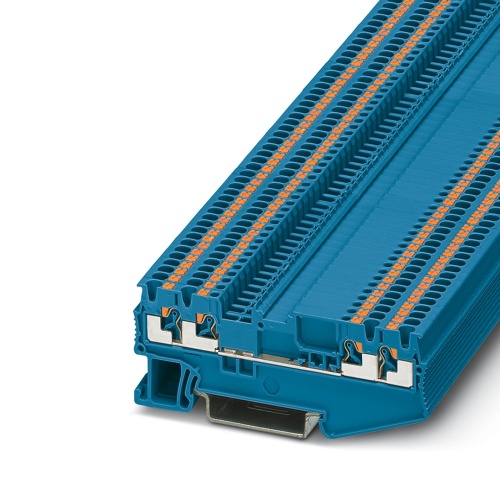

Phoenix Contact 3210329 Feed-through terminal block PT 1,5/S-QUATTRO-MTD BU
Normally In Stock
PT 1,5/S-QUATTRO-MTD BU Phoenix Contact 3210329 Feed Through Terminal Block - PT 1,5/S-QUATTRO-MTD BU Push-In Connection 1 Level 3.5 mm with 4 Connections. Not Grounded, Not Fused Blue. 400 V, 17.5 A max rating.
Condition: New
Usually Ships Same day or Next Day$2.40
Sale Price
$2.00
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 3210329 This terminal block has a similar shape to the disconnect block and features a feed-through design with a nominal voltage of 400V and a nominal current capacity of 17.5A. It accommodates up to four connections via push-in connection method, with rated cross-sectional areas ranging from 0.14mm² to 1.5mm², and is mounted using the NS 35/7.5 and NS 35/15 systems in a blue color.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Voltage Rating
400 Volt
Terminal Block Fused
Not Fused
Terminal Block Number of Levels
1
Terminal Block Number of Connections
4
Terminal Block Width
3.5 mm
Terminal Block Component Color
Blue
Terminal Block Grounded
Not Grounded
Terminal Block Min Wire Size
26
Terminal Block Connection Method
Push-In Connection
Terminal Block Max Wire Size
14
Terminal Block Amperage
17.5 Amp
Component
Terminal Block
Manufacturer
Phoenix Contact
Sub Component
Feed-Through Terminal Block
Sub Component
Multi-Conductor Terminal Block
Features
In addition to the testing option in the double function shaft, all terminal blocks provide an additional test pick-off
The Push-in connection terminal blocks are characterized by the system features of the CLIPLINE complete system and by easy and tool-free wiring of conductors with ferrules or solid conductors
The compact design and front connection enable wiring in a confined space
Downloads
Phoenix 3210329 CAD data International.dxfPhoenix 3210329 CAD data International.pdfPhoenix 3210329 CAD data International.stpPhoenix 3210329 Manufacturers declaration International-2.pdfPhoenix 3210329 Manufacturers declaration International-3.pdfPhoenix 3210329 Manufacturers declaration International.pdfPhoenix 3210329 Safety note English.pdfPhoenix 3210329 Tender Text English.zip
