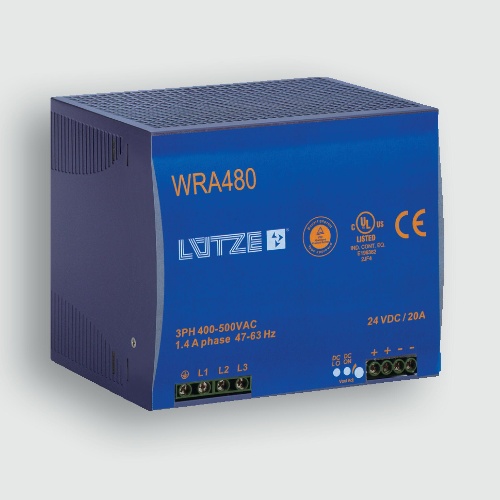

Lutze 722805 WRA480-24 Power Supply 3-Phase 480W, 24V, 20A

Lutze 722805 WRA480-24 - The standard Delta series offers an economical yet highly dependable solution, making it a go-to choice for various applications. With an efficiency rate exceeding 92% and low heat dissipation, it not only saves on energy costs but also ensures long-lasting performance. This series provides a wide input voltage range and a versatile output range spanning from 0.75 amps to 20 amps, catering to a range of needs. Its short circuit protection, parallel, and redundant features ensure safety and operational stability. The availability of spring, screw, and pluggable screw terminals enhances flexibility. Moreover, the series boasts a high Mean Time Between Failures (MTBF), is RoHs compliant, UL 508 Listed, and offers NEC Class 2 and multiple Class 1 Div.2 units, underscoring its comprehensive reliability and adherence to industry standards. - 5.9" x 4.9" x 4.7" (HxWxD)

Specifications
Power Supply Type	Switching
Power Supply Mounting	Din Rail Mount
Power Supply Voltage Output	24 VDC
Power Supply Amperage Output	20 Amp
Power Supply Watts (Nominal Power)	480 Watt
Power Supply Connection Type	Screw Connections
Component	Power Supply
Power Supply Low Temperature	-40°C
Manufacturer	Lutze
Power Supply Low Temperature	-40°F
Power Supply Voltage Input	340 - 550 VAC
Line	Delta Series
Power Supply High Temperature	71°C
Power Supply High Temperature	159.8°F
Power Supply Voltage Input	480 - 820 VDC
