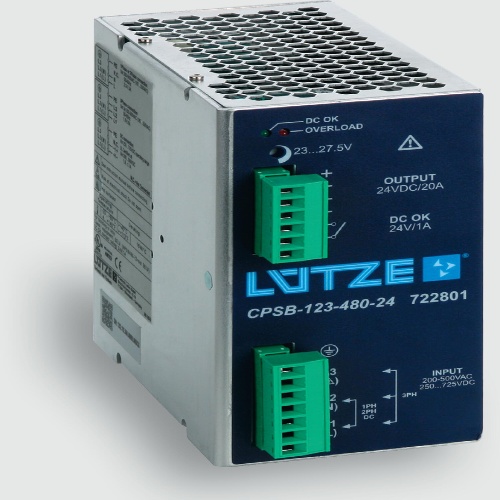

Lutze 722801 CPSB-123-480-24 Power Supply 1-2-3 Phase,480W,24V, 20A
Normally In Stock
Code: 418798
Lutze 722801 CPSB-123-480-24 - Compact Series - 480 Watt - Input: 187 - 550 VAC, 250 - 725 VDC - Output: 24 VDC - 1/2/3 Phase - 20 Amp - 47 Hz-63 Hz - Aluminum - IP20 - Screw Connections - AWG 24-12 - DIN Rail Mount
Condition: New
Usually ships Same Day or Next DayMUST ORDER A MINIMUM OF $100 FROM LUTZE FOR PRODUCT TO SHIP
*NON-CANCELLABLE, NON-RETURNABLE*
$391.56
Sale Price
$326.30
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Lutze 722801 CPSB-123-480-24 - The premium Compact series stands out for its remarkable features, making it an ideal choice for various applications. Its exceptionally compact design ensures space efficiency while maintaining a high efficiency rate of over 94%, resulting in minimal power loss and low heat dissipation. With a wide input voltage range and output options ranging from 2.5 amps to 100 amps, this series offers flexibility and reliability. Moreover, its ability to handle overload situations, reaching up to 150% above the nominal rating for 5 seconds, showcases its robust performance. Equipped with short circuit protection and featuring parallel and redundant capabilities, this series ensures enhanced safety and operational stability. The availability of screw and pluggable screw terminals, along with compliance to RoHs standards and UL 508 Listing, further emphasizes its quality, making it a top choice in the market. - 2.9" x 5.5" x 4.9" (HxWxD)
Specifications
Power Supply Type
Switching
Power Supply Mounting
Din Rail Mount
Power Supply Voltage Phases
Single Phase
Power Supply Voltage Output
24 VDC
Power Supply Amperage Output
20 Amp
Power Supply Watts (Nominal Power)
480 Watt
Component
Power Supply
Manufacturer
Lutze
Line
Compact Series
Power Supply Voltage Input
187 - 550 VAC
Power Supply Voltage Input
250 - 725 VDC
Power Supply Connection Type
Screw Connections
