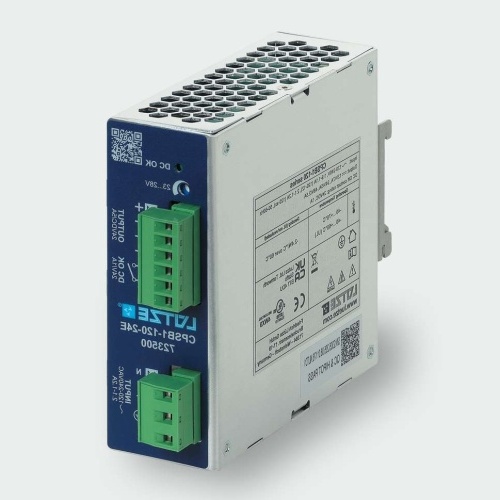

Lutze 723500 CPSB1-120-24E Power Supply 5A, 24V, 120W One Phase

Lutze 723500 CPSB1-120-24E - The premium Compact series stands out for its remarkable features, making it an ideal choice for various applications. Its exceptionally compact design ensures space efficiency while maintaining a high efficiency rate of over 94%, resulting in minimal power loss and low heat dissipation. With a wide input voltage range and output options ranging from 2.5 amps to 100 amps, this series offers flexibility and reliability. Moreover, its ability to handle overload situations, reaching up to 150% above the nominal rating for 5 seconds, showcases its robust performance. Equipped with short circuit protection and featuring parallel and redundant capabilities, this series ensures enhanced safety and operational stability. The availability of screw and pluggable screw terminals, along with compliance to RoHs standards and UL 508 Listing, further emphasizes its quality, making it a top choice in the market. - 1.6" x 4.5" x 4.3" (HxWxD)

Specifications
Power Supply Type	Switching
Power Supply Mounting	Din Rail Mount
Power Supply Voltage Phases	Single Phase
Power Supply Voltage Output	24 VDC
Power Supply Voltage Phases	Three Phase
Power Supply Voltage Phases	Two Phase
Power Supply Amperage Output	5 Amp
Power Supply Watts (Nominal Power)	120 Watt
Power Supply Connection Type	Screw Connections
Component	Power Supply
Power Supply High Temperature	70°C
Power Supply Low Temperature	-40°C
Manufacturer	Lutze
Line	Compact Series
Power Supply Voltage Input	110 - 345 VDC
Power Supply High Temperature	158°F
Power Supply Low Temperature	-40°F
Power Supply Voltage Input	85 - 264 VAC
