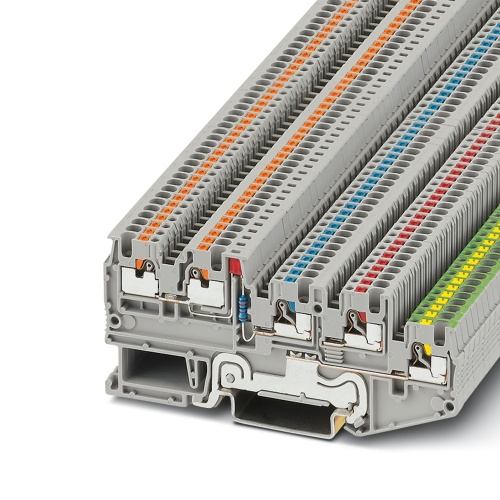

Phoenix Contact 3244467 Initiator/actuator terminal block PTIO 1,5/S/4-PE-LED 24 RD
Normally In Stock
Code: 41763
PTIO 1,5/S/4-PE-LED 24 RD Phoenix Contact 3244467 Sensor/actuator Terminal Block - PTIO 1,5/S/4-PE-LED 24 RD Push-In Connection 1 Level 3.5 mm with 2 Connections. Not Grounded, Not Fused Gray. 24 V, 13.5 A max rating.
Condition: New
Usually ships within 7-14 days. Call for ship time.$12.25
Sale Price
$10.21
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Phoenix Contact 3244467 The terminal block features a red LED display and provides protective conductor functionality, operating at a nominal voltage of 24V with a maximum current draw of 13.5A, accommodating five connections via push-in connection method, with rated cross-sectional areas ranging from 0.14 to 1.5mm2, suitable for mounting types NS 35/7.5 and NS 35/15, and is colored gray.
Specifications
Terminal Block Voltage Rating
24 Volt
Terminal Block Fused
Not Fused
Terminal Block Number of Levels
1
Terminal Block Number of Connections
2
Terminal Block Width
3.5 mm
Terminal Block Component Color
Gray
Terminal Block Grounded
Not Grounded
Terminal Block Connection Method
Push-In Connection
Component
Terminal Block
Manufacturer
Phoenix Contact
Terminal Block Amperage
13.5 Amp
Sub Component
Sensor-Acuator Terminal Block
Features
The Push-in connection terminal blocks are characterized by the system features of the CLIPLINE complete system and by easy and tool-free wiring of conductors with ferrules or solid conductors
The compact design and front connection enable wiring in a confined space
