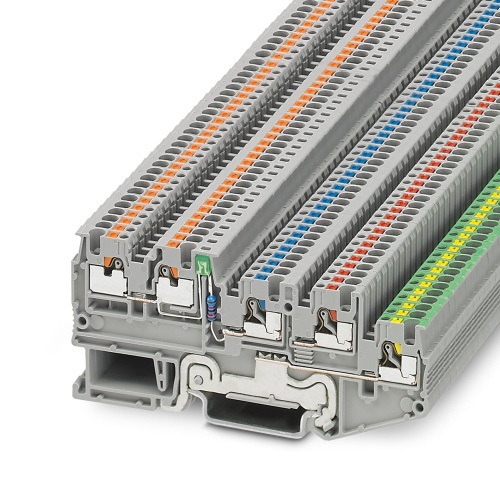

Phoenix Contact 3244466 Initiator/actuator terminal block PTIO 1,5/S/4-PE-LED 24 GN
Normally In Stock
Code: 41762
PTIO 1,5/S/4-PE-LED 24 GN Phoenix Contact 3244466 Sensor/actuator Terminal Block - PTIO 1,5/S/4-PE-LED 24 GN Push-In Connection 1 Level 3.5 mm with 2 Connections. Not Grounded, Not Fused Gray. 24 V, 13.5 A max rating.
Condition: New
Usually ships within 7-14 days. Call for ship time.$12.25
Sale Price
$10.21
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Phoenix Contact 3244466 A terminal block designed for initiating and activating devices features a green LED display and provides a protective conductor function with an operating voltage of 24 V and a maximum current draw of 13.5 A. It has five connection points that can be secured using push-in connections, with a cross-sectional area ranging from 0.14 mm² to 1.5 mm². The terminal block is mounted on two types of standards: NS 35/7,5 and NS 35/15, and its overall color is gray.
Specifications
Terminal Block Voltage Rating
24 Volt
Terminal Block Fused
Not Fused
Terminal Block Number of Levels
1
Terminal Block Number of Connections
2
Terminal Block Width
3.5 mm
Terminal Block Component Color
Gray
Terminal Block Grounded
Not Grounded
Terminal Block Connection Method
Push-In Connection
Component
Terminal Block
Manufacturer
Phoenix Contact
Terminal Block Amperage
13.5 Amp
Sub Component
Sensor-Acuator Terminal Block
Features
The Push-in connection terminal blocks are characterized by the system features of the CLIPLINE complete system and by easy and tool-free wiring of conductors with ferrules or solid conductors
The compact design and front connection enable wiring in a confined space
