Images are for illustration only and may not reflect the actual product. Refer to the description or specs.

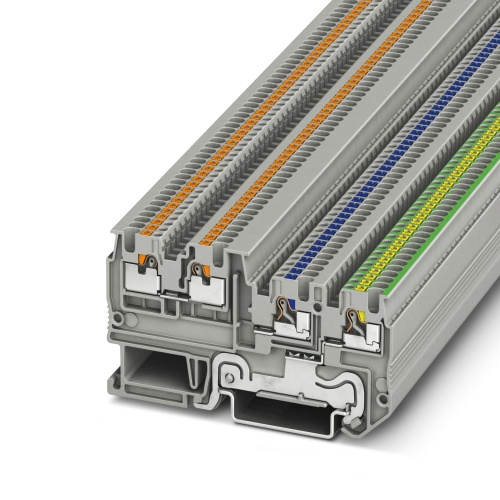

Phoenix Contact 3244449 Initiator/actuator terminal block PTIO 1,5/S/3-PE
Normally In Stock
Code: 41760
PTIO 1,5/S/3-PE Phoenix Contact 3244449 Sensor/actuator Terminal Block - PTIO 1,5/S/3-PE Push-In Connection 1 Level 3.5 mm with 2 Connections. Not Grounded, Not Fused Gray. 250 V, 13.5 A max rating.
Condition: New
Usually Ships Same day or Next Day$6.52
Sale Price
$5.43
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Phoenix Contact 3244449 The initiator/actuator terminal block features a protective conductor function and has a rated voltage of 250 V, a maximum current of 13.5 A, with four connection points that utilize a push-in connection method. The rated cross-sectional area is 1.5 mm2, with an actual range of 0.14-1.5 mm2. The terminal block can be mounted using two types of mounting systems: NS 35/7.5 and NS 35/15, while its color coding is primarily gray.
Specifications
Terminal Block Voltage Rating
250 Volt
Terminal Block Fused
Not Fused
Terminal Block Number of Levels
1
Terminal Block Number of Connections
2
Terminal Block Width
3.5 mm
Terminal Block Component Color
Gray
Terminal Block Grounded
Not Grounded
Terminal Block Connection Method
Push-In Connection
Component
Terminal Block
Manufacturer
Phoenix Contact
Terminal Block Amperage
13.5 Amp
Sub Component
Sensor-Acuator Terminal Block
Features
The Push-in connection terminal blocks are characterized by the system features of the CLIPLINE complete system and by easy and tool-free wiring of conductors with ferrules or solid conductors
The compact design and front connection enable wiring in a confined space
