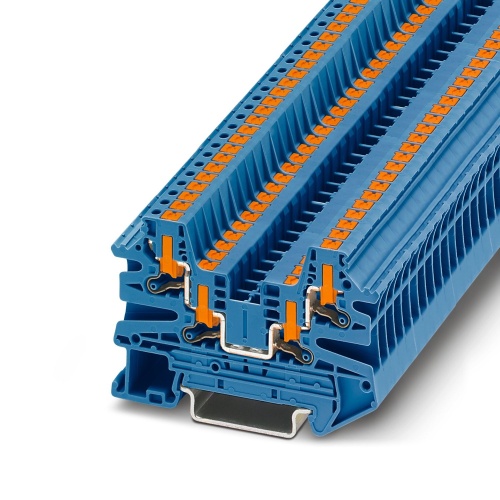

Phoenix Contact 1079006 Feed-through modular terminal block PTV 2,5-QUATTRO BU
Normally In Stock
Code: 41670
PTV 2,5-QUATTRO BU Phoenix Contact 1079006 Ground modular Terminal Block - PTV 2,5-QUATTRO BU Push-In Connection 1 Level 5.2 mm with 2 Connections. Grounded, Not Fused Blue. 800 V, 28 A max rating.
Condition: New
Usually Ships Same day or Next Day$3.07
Sale Price
$2.56
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 1079006 The feed-through modular terminal block has a nominal voltage of 800 V and a maximum current capacity of 24 A, accommodating up to four connections via push-in connection. The rated cross-sectional area is 2.5 mm², but can range from 0.14 mm² to 4 mm². It features mounting types NS 35/7,5 and NS 35/15, and a blue color.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Voltage Rating
800 Volt
Terminal Block Fused
Not Fused
Terminal Block Width
5.2 mm
Terminal Block Number of Levels
1
Terminal Block Number of Connections
4
Terminal Block Component Color
Blue
Terminal Block Grounded
Not Grounded
Terminal Block Max Wire Size
12
Terminal Block Min Wire Size
26
Terminal Block Connection Method
Push-In Connection
Terminal Block Amperage
24 Amp
Component
Terminal Block
Manufacturer
Phoenix Contact
Sub Component
Multi-Conductor Terminal Block
Sub Component
Feed-Through Modular Terminal Block
Features
Clear wiring, thanks to lateral conductor entry
The Push-in connection terminal blocks are characterized by the system features of the CLIPLINE complete system
The compact design enables wiring in a confined space
In addition to the testing option in the double function shaft, all terminal blocks provide an additional test pick-off
Downloads
Phoenix 1079006 CAD data International.dxfPhoenix 1079006 CAD data International.pdfPhoenix 1079006 CAD data International.stpPhoenix 1079006 Manufacturers declaration International-2.pdfPhoenix 1079006 Manufacturers declaration International.pdfPhoenix 1079006 Safety note English.pdfPhoenix 1079006 Tender Text English.zip
