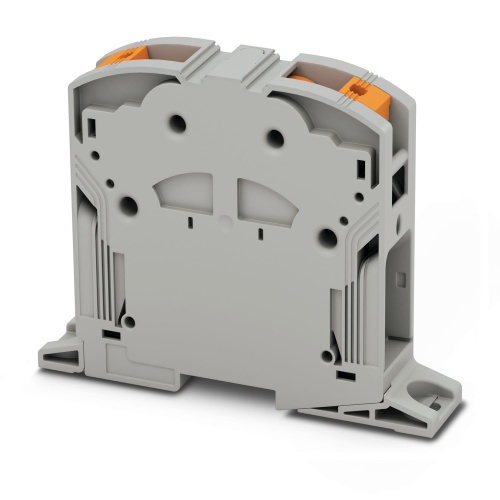

Phoenix Contact 1054732 High-current terminal block PTPOWER 185 F
Normally In Stock
Code: 41582
PTPOWER 185 F Phoenix Contact 1054732 High-current Terminal Block - PTPOWER 185 F Power-Turn Connection 1 Level 31 mm with 2 Connections. Not Grounded, Not Fused Gray. 1500 V DC, 1000 V AC, 309 A max rating.
Condition: New
Usually Ships Same day or Next Day$54.17
Sale Price
$45.14
MUST BUY IN PACKS OF 3
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 1054732 A high-current terminal block with a nominal voltage rating of 1000V and a maximum current capacity of 309A is available, featuring two connections and one position. The connection method employs the PowerTurn system, utilizing a single level design with cross-sectional areas ranging from 95mm² to 185mm². This type of terminal block is mounted using direct screw connections and has a gray coloration.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Voltage Rating
1500 Volt
Terminal Block Fused
Not Fused
Terminal Block Width
31 mm
Terminal Block Number of Levels
1
Terminal Block Number of Connections
2
Terminal Block Component Color
Gray
Terminal Block Grounded
Not Grounded
Terminal Block Connection Method
Power-Turn Connection
Terminal Block Amperage
309 Amp
Component
Terminal Block
Manufacturer
Phoenix Contact
Sub Component
High Current Terminal Block
Sub Component
High-Current Terminal Block
Features
Quick and easy connection is now also possible for large conductors with the high-current terminal block
The compact design enables wiring in a confined space

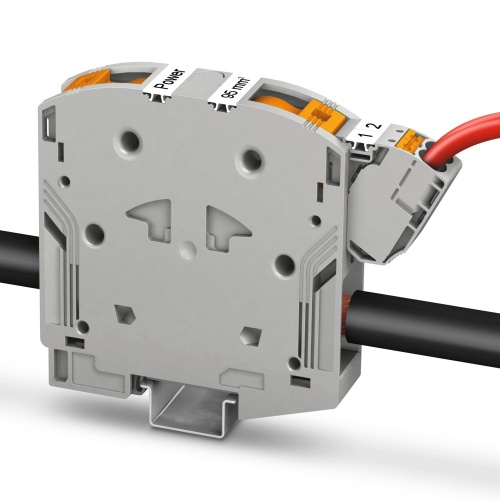

In addition to using the existing test pick-off, pick-off terminal blocks can be connected, each of which can also accommodate two test cables
Downloads
Phoenix 1054732 Application Note International.jpgPhoenix 1054732 CAD data International.dxfPhoenix 1054732 CAD data International.pdfPhoenix 1054732 CAD data International.stpPhoenix 1054732 Manufacturers declaration International-2.pdfPhoenix 1054732 Manufacturers declaration International.pdfPhoenix 1054732 Package Slip International.pdfPhoenix 1054732 Safety note English.pdfPhoenix 1054732 Tender Text English.zip
