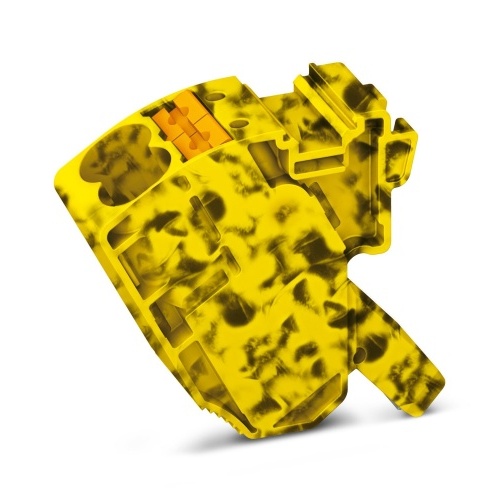

Phoenix Contact 3260154 Pick-off terminal block AGK 10-PTPOWER BK/YE
Normally In Stock
Code: 41772
Phoenix Contact 3260154 Pick-off Terminal Block - AGK 10-PTPOWER BK/YE Push-In Connection 1 Level 18.5 mm with 2 Connections. Not Grounded, Not Fused Black-Yellow. 1500 V, 57 A max rating.
Condition: New
Usually Ships Same day or Next Day$4.96
Sale Price
$4.13
MUST BUY IN PACKS OF 10
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Phoenix Contact 3260154 The pick-off terminal block features a nominal voltage of 1500 V and a maximum current capacity of 57 A, accommodating two connections via push-in connections. The rated cross-sectional areas range from 0.5 mm² to 16 mm², with the main level having a larger section of 10 mm². It is designed for mounting on base elements and has a color code of black and yellow.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Voltage Rating
1500 Volt
Terminal Block Fused
Not Fused
Terminal Block Number of Levels
1
Terminal Block Number of Connections
2
Terminal Block Width
18.5 mm
Terminal Block Component Color
Black/Yellow
Terminal Block Grounded
Not Grounded
Terminal Block Amperage
57 Amp
Terminal Block Connection Method
Push-In Connection
Component
Terminal Block
Manufacturer
Phoenix Contact
Sub Component
Pick-Off Terminal Block
Features
Large-surface marking
The fully insulated, optionally used pick-off terminal block enables voltage pick-off
Pick-off terminal block, for snapping into the side insertion funnel
