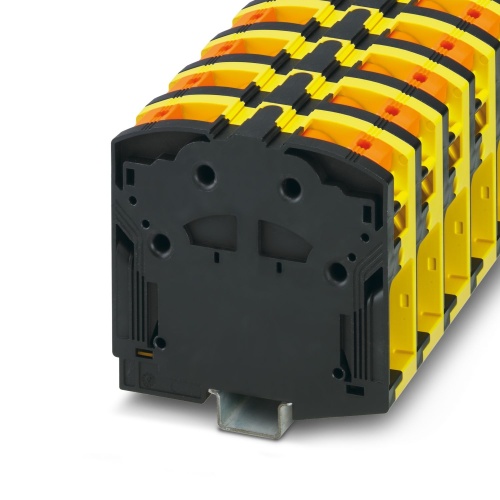

Phoenix Contact 1054724 High-current terminal block PTPOWER 185-FE
Normally In Stock
Code: 41575
PTPOWER 185-FE Phoenix Contact 1054724 High-current Terminal Block - PTPOWER 185-FE Power-Turn Connection 1 Level 31 mm with 2 Connections. Not Grounded, Not Fused Black-Yellow. 1500 V DC, 1000 V AC, 309 A max rating.
Condition: New
Usually Ships Same day or Next Day$54.17
Sale Price
$45.14
MUST BUY IN PACKS OF 3
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 1054724 The terminal block has a high-current rating with a nominal voltage of 1000 V and a maximum current capacity of 309 A. It features two connection points and one position, utilizing the PowerTurn connection method at one level, with a cross-sectional area ranging from 95 mm2 to 185 mm2. The mounting type is NS 35/15 and it has a black and yellow color scheme.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Voltage Rating
1500 Volt
Terminal Block Fused
Not Fused
Terminal Block Width
31 mm
Terminal Block Number of Levels
1
Terminal Block Number of Connections
2
Terminal Block Component Color
Black/Yellow
Terminal Block Grounded
Not Grounded
Terminal Block Connection Method
Power-Turn Connection
Terminal Block Amperage
309 Amp
Component
Terminal Block
Manufacturer
Phoenix Contact
Sub Component
High Current Terminal Block
Sub Component
High-Current Terminal Block
Features
Quick and easy connection is now also possible for large conductors with the high-current terminal block
In addition to using the existing test pick-off, pick-off terminal blocks can be connected, each of which can also accommodate two test cables
The Push-in connection terminal blocks are characterized by the system features of the CLIPLINE complete system and by easy and tool-free wiring of conductors with ferrules or solid conductors
The compact design enables wiring in a confined space
Downloads
Phoenix 1054724 Application Note International.jpgPhoenix 1054724 CAD data International.dxfPhoenix 1054724 CAD data International.pdfPhoenix 1054724 CAD data International.stpPhoenix 1054724 Manufacturers declaration International-2.pdfPhoenix 1054724 Manufacturers declaration International.pdfPhoenix 1054724 Package Slip International.pdfPhoenix 1054724 Safety note English.pdfPhoenix 1054724 Tender Text English.zip
