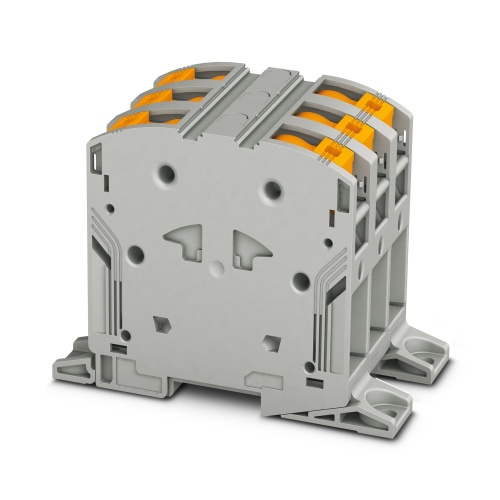

Phoenix Contact 3260121 High-current terminal block PTPOWER 95-3L-F
Normally In Stock
Code: 41560
PTPOWER 95-3L-F Phoenix Contact 3260121 High-current Terminal Block - PTPOWER 95-3L-F Power-Turn Connection 1 Level 75 mm with 2 Connections. Not Grounded, Not Fused Gray. 1000 V AC, 1500 V DC, 232 A max rating.
Condition: New
Usually Ships Same day or Next Day$163.60
Sale Price
$136.33
MUST BUY IN PACKS OF 3
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 3260121 The terminal block has a high-current rating with a nominal voltage of 1000 V and a nominal current capacity of 232 A, accommodating six connections across three positions. It features a PowerTurn connection method, with cross-sectional areas ranging from 25 mm2 to 95 mm2, secured through direct screw mounting in a gray color.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Voltage Rating
1000 Volt
Terminal Block Fused
Not Fused
Terminal Block Number of Levels
1
Terminal Block Number of Connections
6
Terminal Block Width
75 mm
Terminal Block Component Color
Gray
Terminal Block Grounded
Not Grounded
Terminal Block Min Wire Size
4
Terminal Block Connection Method
Power-Turn Connection
Terminal Block Amperage
232 Amp
Component
Terminal Block
Manufacturer
Phoenix Contact
Sub Component
High Current Terminal Block
Sub Component
High-Current Terminal Block
Features
Quick and easy connection is now also possible for large conductors with the high-current terminal block
In addition to using the existing test pick-off, pick-off terminal blocks can be connected, each of which can also accommodate two test cables
The Push-in connection terminal blocks are characterized by the system features of the CLIPLINE complete system and by easy and tool-free wiring of conductors with ferrules or solid conductors
The compact design enables wiring in a confined space
Downloads
Phoenix 3260121 Application Note International.jpgPhoenix 3260121 CAD data International.dxfPhoenix 3260121 CAD data International.pdfPhoenix 3260121 CAD data International.stpPhoenix 3260121 Manufacturers declaration International-2.pdfPhoenix 3260121 Manufacturers declaration International-3.pdfPhoenix 3260121 Manufacturers declaration International.pdfPhoenix 3260121 Package Slip International.pdfPhoenix 3260121 Safety note English.pdfPhoenix 3260121 Tender Text English.zip
