Images are for illustration only and may not reflect the actual product. Refer to the description or specs.

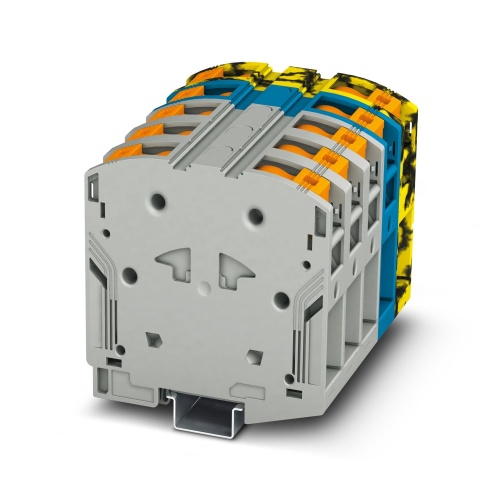

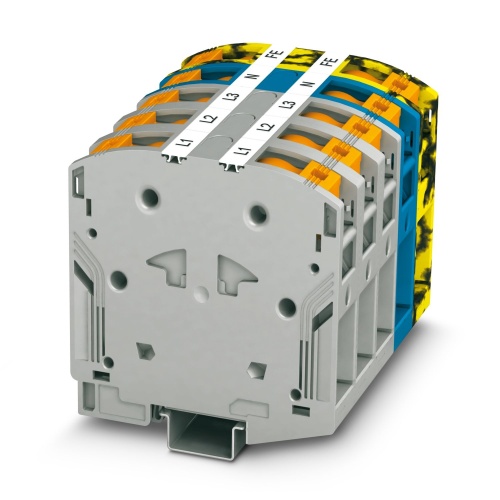

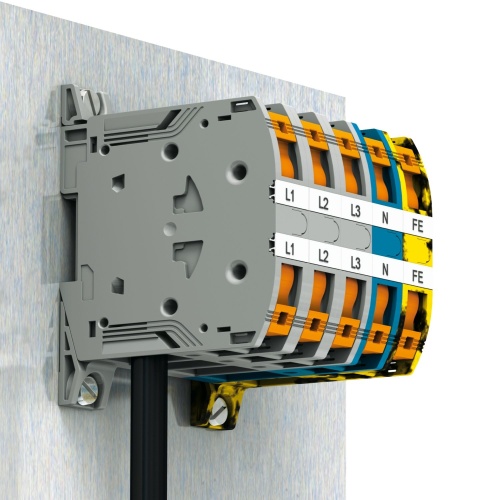

Phoenix Contact 3260118 High-current terminal block PTPOWER 95-3L/N/FE
Normally In Stock
Code: 41559
PTPOWER 95-3L/N/FE Phoenix Contact 3260118 High-current Terminal Block - PTPOWER 95-3L/N/FE Power-Turn Connection 1 Level 125 mm with 2 Connections. Not Grounded, Not Fused Gray-Blue-Black-Yellow. 1000 V AC, 1500 V DC, 232 A max rating.
Condition: New
Usually Ships Same day or Next Day$202.56
Sale Price
$168.80
MUST BUY IN PACKS OF 2
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 3260118 A terminal block with a high current capacity features a nominal voltage of 1000 V and an exceptional current rating of 232 A. It offers ten connections across five positions, facilitated by the PowerTurn connection method. The cross-sectional area ranges from 25 mm2 to 95 mm2 for accommodating diverse applications. Its mounting type is NS 35/15, while its color scheme consists of gray, blue, and black-yellow hues.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Voltage Rating
1000 Volt
Terminal Block Fused
Not Fused
Terminal Block Number of Levels
1
Terminal Block Number of Connections
10
Terminal Block Width
125 mm
Terminal Block Grounded
Not Grounded
Terminal Block Min Wire Size
4
Terminal Block Connection Method
Power-Turn Connection
Terminal Block Amperage
232 Amp
Terminal Block Component Color
Gray/Blue/Black/Yellow
Component
Terminal Block
Manufacturer
Phoenix Contact
Sub Component
High Current Terminal Block
Sub Component
High-Current Terminal Block
Features
Quick and easy connection is now also possible for large conductors with the high-current terminal block

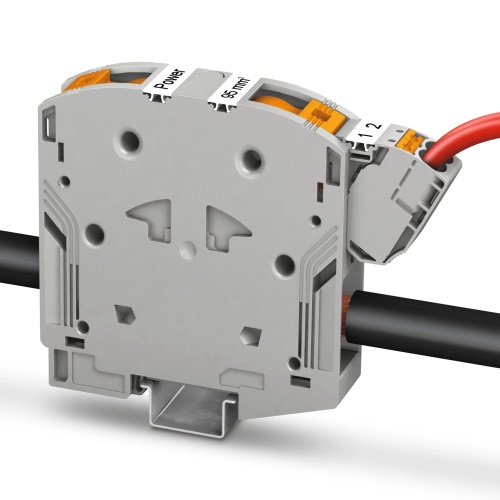

In addition to using the existing test pick-off, pick-off terminal blocks can be connected, each of which can also accommodate two test cables
The Push-in connection terminal blocks are characterized by the system features of the CLIPLINE complete system and by easy and tool-free wiring of conductors with ferrules or solid conductors
The compact design enables wiring in a confined space
Downloads
Phoenix 3260118 Application Note International.jpgPhoenix 3260118 CAD data International.dxfPhoenix 3260118 CAD data International.pdfPhoenix 3260118 CAD data International.stpPhoenix 3260118 Manufacturers declaration International-2.pdfPhoenix 3260118 Manufacturers declaration International.pdfPhoenix 3260118 Package Slip International.pdfPhoenix 3260118 Safety note English.pdfPhoenix 3260118 Tender Text English.zip
