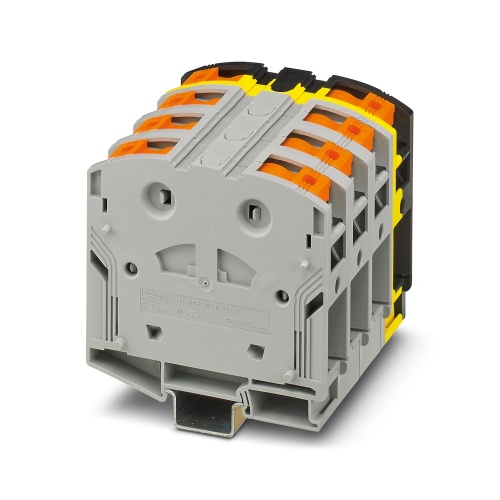

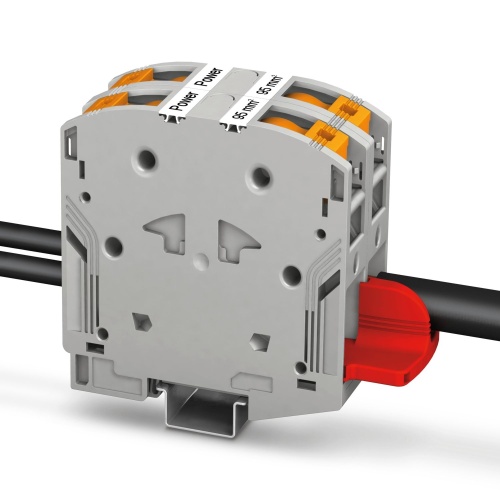

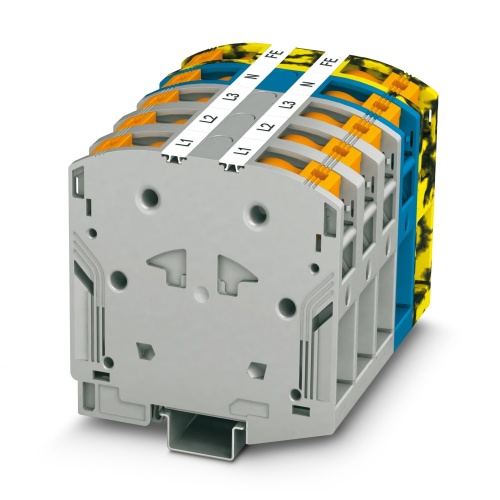

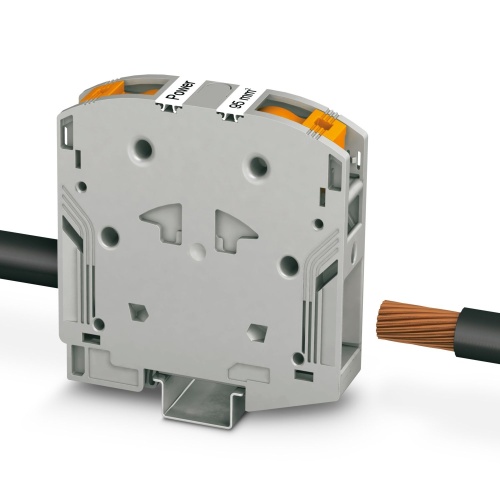

Phoenix Contact 3260115 High-current terminal block PTPOWER 95-3L/FE
Normally In Stock
Code: 41558
PTPOWER 95-3L/FE Phoenix Contact 3260115 High-current Terminal Block - PTPOWER 95-3L/FE Power-Turn Connection 1 Level 100 mm with 2 Connections. Not Grounded, Not Fused Gray-Black-Yellow. 1000 V AC, 1500 V DC, 232 A max rating.
Condition: New
Usually Ships Same day or Next Day$218.18
Sale Price
$181.82
MUST BUY IN PACKS OF 2
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 3260115 The terminal block features a high-current design with specifications including a blocked configuration, nominal voltage of 1000 V and nominal current of 232 A. It has 8 connections and can accommodate 4 positions, utilizing the PowerTurn connection method. The cross-sectional area ranges from 25 mm2 to 95 mm2, allowing for flexible cable management, while its mounting type is NS 35/15 and its color scheme consists of gray, black, and yellow tones.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Voltage Rating
1000 Volt
Terminal Block Fused
Not Fused
Terminal Block Width
100 mm
Terminal Block Number of Levels
1
Terminal Block Number of Connections
8
Terminal Block Grounded
Not Grounded
Terminal Block Min Wire Size
4
Terminal Block Connection Method
Power-Turn Connection
Terminal Block Amperage
232 Amp
Terminal Block Component Color
Gray/Black/Yellow
Component
Terminal Block
Manufacturer
Phoenix Contact
Sub Component
High Current Terminal Block
Sub Component
High-Current Terminal Block
Features
Quick and easy connection is now also possible for large conductors with the high-current terminal block
In addition to using the existing test pick-off, pick-off terminal blocks can be connected, each of which can also accommodate two test cables
The Push-in connection terminal blocks are characterized by the system features of the CLIPLINE complete system and by easy and tool-free wiring of conductors with ferrules or solid conductors
The compact design enables wiring in a confined space
Downloads
Phoenix 3260115 Application Note International.jpgPhoenix 3260115 CAD data International.dxfPhoenix 3260115 CAD data International.pdfPhoenix 3260115 CAD data International.stpPhoenix 3260115 Manufacturers declaration International-2.pdfPhoenix 3260115 Manufacturers declaration International.pdfPhoenix 3260115 Package Slip International.pdfPhoenix 3260115 Safety note English.pdfPhoenix 3260115 Tender Text English.zip
