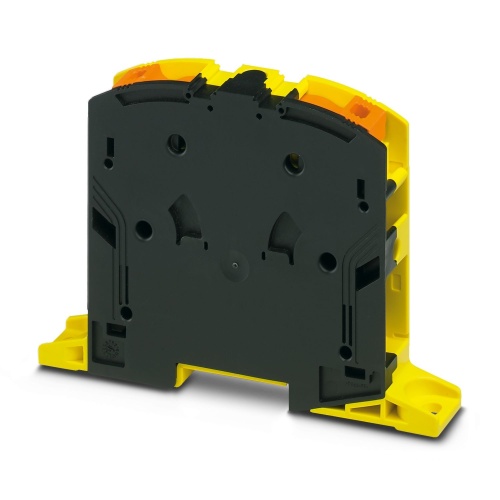

Phoenix Contact 3260064 High-current terminal block PTPOWER 50-FE-F
Normally In Stock
Code: 41555
PTPOWER 50-FE-F Phoenix Contact 3260064 High-current Terminal Block - PTPOWER 50-FE-F Power-Turn Connection 1 Level 20 mm with 2 Connections. Not Grounded, Not Fused Black-Yellow. 1000 V AC, 1500 V DC, 150 A max rating.
Condition: New
Usually Ships Same day or Next Day$24.98
Sale Price
$20.82
MUST BUY IN PACKS OF 10
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 3260064 The terminal block features a high-current design with a nominal voltage of 1000V and a maximum current rating of 150A. It has two connections and is designed for use in single-position applications. The connections are secured using the PowerTurn method, which involves a one-level configuration, while the cross-sectional area varies between 10mm² to 70mm². The terminal block can be mounted directly using screws and comes in a black/yellow color scheme.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Voltage Rating
1000 Volt
Terminal Block Fused
Not Fused
Terminal Block Width
20 mm
Terminal Block Number of Levels
1
Terminal Block Number of Connections
2
Terminal Block Component Color
Black/Yellow
Terminal Block Grounded
Not Grounded
Terminal Block Min Wire Size
8
Terminal Block Connection Method
Power-Turn Connection
Terminal Block Amperage
150 Amp
Component
Terminal Block
Manufacturer
Phoenix Contact
Sub Component
High Current Terminal Block
Sub Component
High-Current Terminal Block
Features
Quick and easy connection is now also possible for large conductors with the high-current terminal block
The Push-in connection terminal blocks are characterized by the system features of the CLIPLINE complete system and by easy and tool-free wiring of conductors with ferrules or solid conductors
The compact design enables wiring in a confined space
In addition to using the existing test pick-off, pick-off terminal blocks can be connected, each of which can also accommodate two test cables
Downloads
Phoenix 3260064 Application Note International.jpgPhoenix 3260064 CAD data International.dxfPhoenix 3260064 CAD data International.pdfPhoenix 3260064 CAD data International.stpPhoenix 3260064 Manufacturers declaration International-2.pdfPhoenix 3260064 Manufacturers declaration International.pdfPhoenix 3260064 Package Slip International.pdfPhoenix 3260064 Safety note English.pdfPhoenix 3260064 Tender Text English.zip
