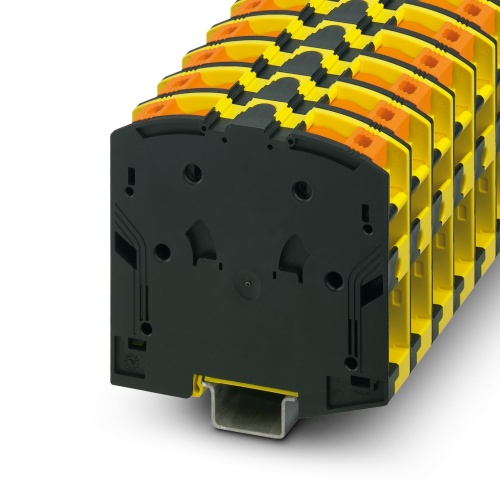

Phoenix Contact 3260063 High-current terminal block PTPOWER 50-FE
Normally In Stock
Code: 41554
PTPOWER 50-FE Phoenix Contact 3260063 High-current Terminal Block - PTPOWER 50-FE Power-Turn Connection 1 Level 20 mm with 2 Connections. Not Grounded, Not Fused Black-Yellow. 1000 V AC, 1500 V DC, 150 A max rating.
Condition: New
Usually Ships Same day or Next Day$24.98
Sale Price
$20.82
MUST BUY IN PACKS OF 10
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 3260063 A high-current terminal block features a nominal voltage of 1000 V and a nominal current rating of 150 A. It has two connections and one position with the powerTurn connection method used at one level. The cross-sectional area ranges from 10 mm2 to 70 mm2, while the mounting type is NS 35/15 and the color scheme includes black and yellow.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Voltage Rating
1000 Volt
Terminal Block Fused
Not Fused
Terminal Block Width
20 mm
Terminal Block Number of Levels
1
Terminal Block Number of Connections
2
Terminal Block Component Color
Black/Yellow
Terminal Block Grounded
Not Grounded
Terminal Block Min Wire Size
8
Terminal Block Connection Method
Power-Turn Connection
Terminal Block Amperage
150 Amp
Component
Terminal Block
Manufacturer
Phoenix Contact
Sub Component
High Current Terminal Block
Sub Component
High-Current Terminal Block
Features
Quick and easy connection is now also possible for large conductors with the high-current terminal block
In addition to using the existing test pick-off, pick-off terminal blocks can be connected, each of which can also accommodate two test cables
The Push-in connection terminal blocks are characterized by the system features of the CLIPLINE complete system and by easy and tool-free wiring of conductors with ferrules or solid conductors
The compact design enables wiring in a confined space
Downloads
Phoenix 3260063 Application Note International.jpgPhoenix 3260063 CAD data International.dxfPhoenix 3260063 CAD data International.pdfPhoenix 3260063 CAD data International.stpPhoenix 3260063 Manufacturers declaration International-2.pdfPhoenix 3260063 Manufacturers declaration International.pdfPhoenix 3260063 Package Slip International.pdfPhoenix 3260063 Safety note English.pdfPhoenix 3260063 Tender Text English.zip
