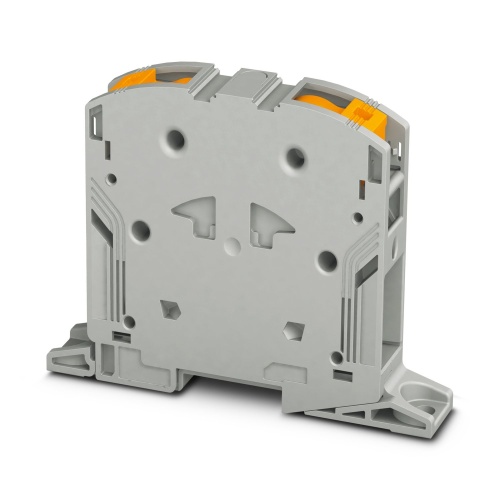

Phoenix Contact 3260061 High-current terminal block PTPOWER 50-F
Normally In Stock
Code: 41552
PTPOWER 50-F Phoenix Contact 3260061 High-current Terminal Block - PTPOWER 50-F Power-Turn Connection 1 Level 20 mm with 2 Connections. Not Grounded, Not Fused Gray. 1000 V AC, 1500 V DC, 150 A max rating.
Condition: New
Usually Ships Same day or Next Day$24.98
Sale Price
$20.82
MUST BUY IN PACKS OF 10
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 3260061 A high-current terminal block features a nominal voltage of 1000 V and a nominal current capacity of 150 A, accommodating two connections and one position with a PowerTurn connection at one level. The cross-sectional area ranges from 10 mm² to 70 mm² and is secured via direct screw mounting in a gray finish.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Voltage Rating
1000 Volt
Terminal Block Fused
Not Fused
Terminal Block Width
20 mm
Terminal Block Number of Levels
1
Terminal Block Number of Connections
2
Terminal Block Component Color
Gray
Terminal Block Grounded
Not Grounded
Terminal Block Min Wire Size
8
Terminal Block Connection Method
Power-Turn Connection
Terminal Block Amperage
150 Amp
Component
Terminal Block
Manufacturer
Phoenix Contact
Sub Component
High Current Terminal Block
Sub Component
High-Current Terminal Block
Features

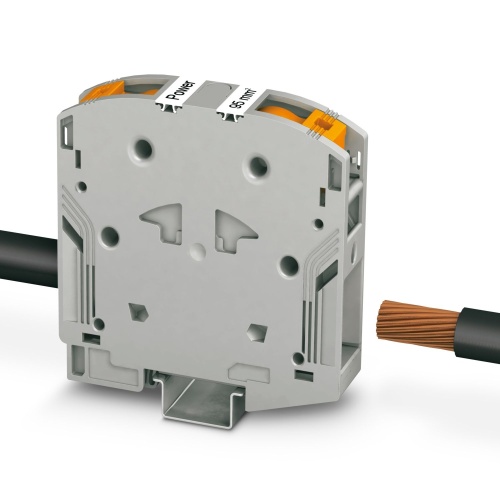

Quick and easy connection is now also possible for large conductors with the high-current terminal block
The compact design enables wiring in a confined space

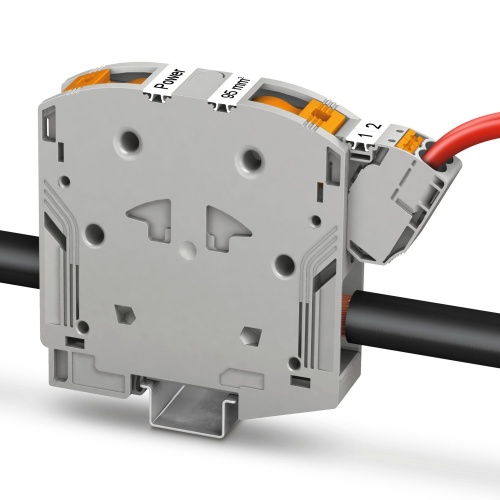

In addition to using the existing test pick-off, pick-off terminal blocks can be connected, each of which can also accommodate two test cables
The Push-in connection terminal blocks are characterized by the system features of the CLIPLINE complete system and by easy and tool-free wiring of conductors with ferrules or solid conductors
Downloads
Phoenix 3260061 Application Note International.jpgPhoenix 3260061 CAD data International.dxfPhoenix 3260061 CAD data International.pdfPhoenix 3260061 CAD data International.stpPhoenix 3260061 Manufacturers declaration International-2.pdfPhoenix 3260061 Manufacturers declaration International.pdfPhoenix 3260061 Package Slip International.pdfPhoenix 3260061 Safety note English.pdfPhoenix 3260061 Tender Text English.zip
