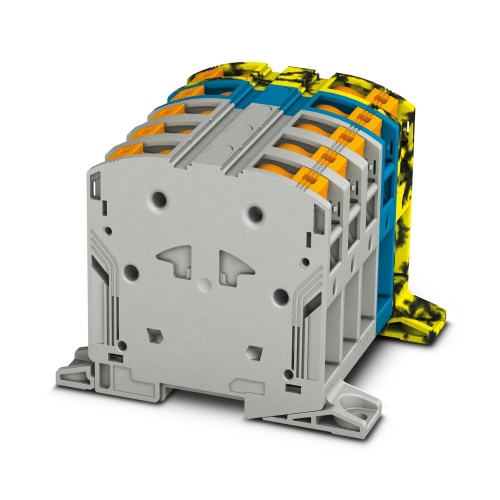

Phoenix Contact 3260060 High-current terminal block PTPOWER 50-3L/N/FE-F
Normally In Stock
Code: 41551
PTPOWER 50-3L/N/FE-F Phoenix Contact 3260060 High-current Terminal Block - PTPOWER 50-3L/N/FE-F Power-Turn Connection 1 Level 100 mm with 2 Connections. Not Grounded, Not Fused Gray-Blue-Black-Yellow. 1000 V AC, 1500 V DC, 150 A max rating.
Condition: New
Usually Ships Same day or Next Day$134.17
Sale Price
$111.81
MUST BUY IN PACKS OF 2
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 3260060 The terminal block features a high-current rating with specifications including a nominal voltage of 1000V and a maximum nominal current of 150A. It has ten connection points and five positions, utilizing the PowerTurn connection method at one level, accommodating cross sections ranging from 10mm² to 70mm² through direct screw mounting and available in gray/blue/black-yellow colors.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Voltage Rating
1000 Volt
Terminal Block Fused
Not Fused
Terminal Block Width
100 mm
Terminal Block Number of Levels
1
Terminal Block Number of Connections
10
Terminal Block Grounded
Not Grounded
Terminal Block Min Wire Size
8
Terminal Block Connection Method
Power-Turn Connection
Terminal Block Amperage
150 Amp
Terminal Block Component Color
Gray/Blue/Black/Yellow
Component
Terminal Block
Manufacturer
Phoenix Contact
Sub Component
High Current Terminal Block
Sub Component
High-Current Terminal Block
Features
Quick and easy connection is now also possible for large conductors with the high-current terminal block
The compact design enables wiring in a confined space
In addition to using the existing test pick-off, pick-off terminal blocks can be connected, each of which can also accommodate two test cables
The Push-in connection terminal blocks are characterized by the system features of the CLIPLINE complete system and by easy and tool-free wiring of conductors with ferrules or solid conductors
Downloads
Phoenix 3260060 CAD data International.dxfPhoenix 3260060 CAD data International.pdfPhoenix 3260060 CAD data International.stpPhoenix 3260060 Manufacturers declaration International-2.pdfPhoenix 3260060 Manufacturers declaration International.pdfPhoenix 3260060 Package Slip International.pdfPhoenix 3260060 Safety note English.pdfPhoenix 3260060 Tender Text English.zipPhoenix 3260060 Application Note International.jpg
