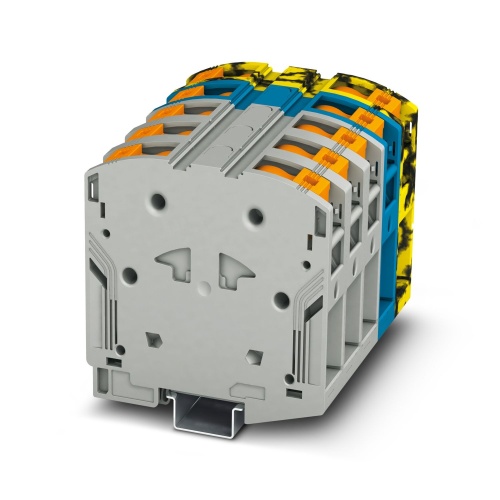

Phoenix Contact 3260056 High-current terminal block PTPOWER 50-3L/N/FE
Normally In Stock
Code: 41547
PTPOWER 50-3L/N/FE Phoenix Contact 3260056 High-current Terminal Block - PTPOWER 50-3L/N/FE Power-Turn Connection 1 Level 100 mm with 2 Connections. Not Grounded, Not Fused Gray-Blue-Black-Yellow. 1000 V AC, 1500 V DC, 150 A max rating.
Condition: New
Usually Ships Same day or Next Day$134.17
Sale Price
$111.81
MUST BUY IN PACKS OF 2
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 3260056 A high-current terminal block with a nominal voltage of 1000 V and a maximum current rating of 150 A is blocked in its standard configuration. It features ten connections and five positions, utilizing the PowerTurn connection method at one level. The cross-sectional area ranges from 10 mm² to 70 mm², while it is mounted using an NS 35/15 type and has a gray/blue/black-yellow color scheme.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Voltage Rating
1000 Volt
Terminal Block Fused
Not Fused
Terminal Block Width
100 mm
Terminal Block Number of Levels
1
Terminal Block Number of Connections
10
Terminal Block Grounded
Not Grounded
Terminal Block Min Wire Size
8
Terminal Block Connection Method
Power-Turn Connection
Terminal Block Amperage
150 Amp
Terminal Block Component Color
Gray/Blue/Black/Yellow
Component
Terminal Block
Manufacturer
Phoenix Contact
Sub Component
High Current Terminal Block
Sub Component
High-Current Terminal Block
Features
Quick and easy connection is now also possible for large conductors with the high-current terminal block
In addition to using the existing test pick-off, pick-off terminal blocks can be connected, each of which can also accommodate two test cables
The compact design enables wiring in a confined space
The Push-in connection terminal blocks are characterized by the system features of the CLIPLINE complete system and by easy and tool-free wiring of conductors with ferrules or solid conductors
Downloads
Phoenix 3260056 Application Note International.jpgPhoenix 3260056 CAD data International.dxfPhoenix 3260056 CAD data International.pdfPhoenix 3260056 CAD data International.stpPhoenix 3260056 Manufacturers declaration International-2.pdfPhoenix 3260056 Manufacturers declaration International.pdfPhoenix 3260056 Package Slip International.pdfPhoenix 3260056 Safety note English.pdfPhoenix 3260056 Tender Text English.zip
