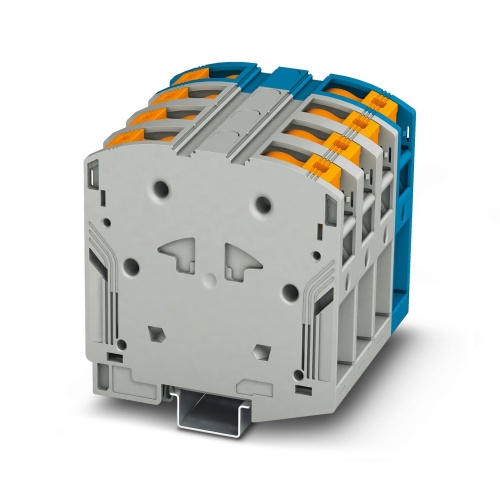

Phoenix Contact 3260054 High-current terminal block PTPOWER 50-3L/N
Normally In Stock
Code: 41545
PTPOWER 50-3L/N Phoenix Contact 3260054 High-current Terminal Block - PTPOWER 50-3L/N Power-Turn Connection 1 Level 80 mm with 2 Connections. Not Grounded, Not Fused Gray-Blue. 1000 V AC, 1500 V DC, 150 A max rating.
Condition: New
Usually Ships Same day or Next Day$127.55
Sale Price
$106.29
MUST BUY IN PACKS OF 3
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 3260054 The terminal block features a high-current design with a nominal voltage of 1000 V and a maximum current capacity of 150 A, accommodating eight connections in four positions using the PowerTurn connection method, with cross-section sizes ranging from 10 mm2 to 70 mm2. The mounting type is NS 35/15 and it has a gray/blue coloration.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Voltage Rating
1000 Volt
Terminal Block Fused
Not Fused
Terminal Block Width
80 mm
Terminal Block Number of Levels
1
Terminal Block Number of Connections
8
Terminal Block Grounded
Not Grounded
Terminal Block Min Wire Size
8
Terminal Block Connection Method
Power-Turn Connection
Terminal Block Component Color
Gray/Blue
Terminal Block Amperage
150 Amp
Component
Terminal Block
Manufacturer
Phoenix Contact
Sub Component
High Current Terminal Block
Sub Component
High-Current Terminal Block
Features
Quick and easy connection is now also possible for large conductors with the high-current terminal block
The Push-in connection terminal blocks are characterized by the system features of the CLIPLINE complete system and by easy and tool-free wiring of conductors with ferrules or solid conductors
In addition to using the existing test pick-off, pick-off terminal blocks can be connected, each of which can also accommodate two test cables
The compact design enables wiring in a confined space
Downloads
Phoenix 3260054 Application Note International.jpgPhoenix 3260054 CAD data International.dxfPhoenix 3260054 CAD data International.pdfPhoenix 3260054 CAD data International.stpPhoenix 3260054 Manufacturers declaration International-2.pdfPhoenix 3260054 Manufacturers declaration International.pdfPhoenix 3260054 Package Slip International.pdfPhoenix 3260054 Safety note English.pdfPhoenix 3260054 Tender Text English.zip
