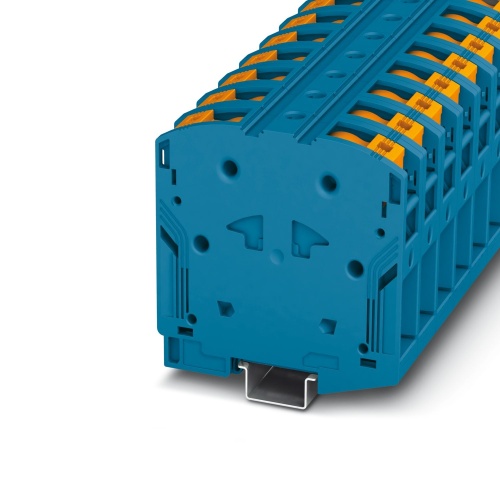

Phoenix Contact 3260066 High-current terminal block PTPOWER 50 P BU
Normally In Stock
Code: 41543
PTPOWER 50 P BU Phoenix Contact 3260066 High-current Terminal Block - PTPOWER 50 P BU Power-Turn Connection 1 Level 20 mm with 2 Connections. Not Grounded, Not Fused Blue. 1000 V AC, 1500 V DC, 150 A max rating.
Condition: New
Usually ships within 7-14 days. Call for ship time.$25.38
Sale Price
$21.15
MUST BUY IN PACKS OF 10
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 3260066 A high-current terminal block features a test socket and is rated for 1000 volts with a maximum current of 150 amps, supporting two connections and one position in a PowerTurn connection configuration with varying cross-sectional areas from 10 to 70 square millimeters and can be mounted using the NS 35/15 type, colored blue.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Voltage Rating
1000 Volt
Terminal Block Fused
Not Fused
Terminal Block Width
20 mm
Terminal Block Number of Levels
1
Terminal Block Number of Connections
2
Terminal Block Component Color
Blue
Terminal Block Grounded
Not Grounded
Terminal Block Min Wire Size
8
Terminal Block Connection Method
Power-Turn Connection
Terminal Block Amperage
150 Amp
Component
Terminal Block
Manufacturer
Phoenix Contact
Sub Component
High Current Terminal Block
Sub Component
High-Current Terminal Block
Features
Quick and easy connection is now also possible for large conductors with the high-current terminal block
In addition to using the existing test pick-off, pick-off terminal blocks can be connected, each of which can also accommodate two test cables
The compact design enables wiring in a confined space
The Push-in connection terminal blocks are characterized by the system features of the CLIPLINE complete system and by easy and tool-free wiring of conductors with ferrules or solid conductors
Downloads
Phoenix 3260066 Application Note International.jpgPhoenix 3260066 CAD data International.dxfPhoenix 3260066 CAD data International.pdfPhoenix 3260066 CAD data International.stpPhoenix 3260066 Manufacturers declaration International-2.pdfPhoenix 3260066 Manufacturers declaration International.pdfPhoenix 3260066 Package Slip International.pdfPhoenix 3260066 Safety note English.pdfPhoenix 3260066 Tender Text English.zip
