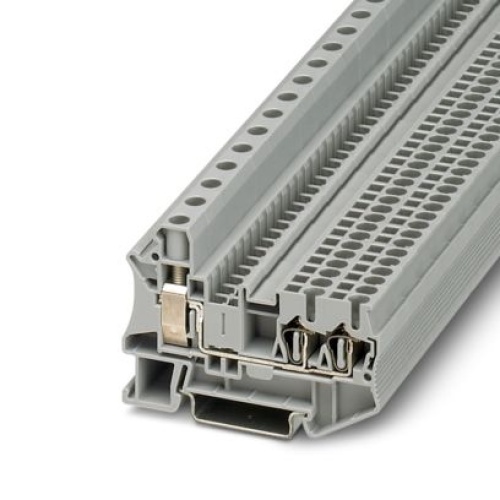

Phoenix Contact 3033139 Potential collective terminal STU 10/ 4X2,5
Normally In Stock
Code: 41462
STU 10/ 4X2,5 Phoenix Contact 3033139 Potential collective Terminal - STU 10/ 4X2,5 Spring Cage Connection 1 Level 10.3 mm with 5 Connections. Not Grounded, Not Fused Gray. 800 Volt, 24 Amp max rating.
Condition: New
Usually Ships Same day or Next Day$7.92
Sale Price
$6.60
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Phoenix Contact 3033139 The terminal's specifications include a potential collective voltage of 800 V and a nominal current of 55 A, with connections available in both screw and spring-cage types. The cross-sectional ratings range from 10 mm2 to 16 mm2 for the screw connection, and 0.5 mm2 to 4 mm2 for the spring-cage connection. Additionally, the terminal has mounting options available in sizes NS 35/7,5 and NS 35/15, with a standard color of gray.
Specifications
Terminal Block Voltage Rating
800 Volt
Terminal Block Fused
Not Fused
Terminal Block Width
10.3 mm
Terminal Block Number of Levels
1
Terminal Block Number of Connections
5
Terminal Block Component Color
Gray
Terminal Block Grounded
Not Grounded
Terminal Block Connection Method
Spring-Cage Connection
Terminal Block Amperage
24 Amp
Component
Terminal Block
Manufacturer
Phoenix Contact
Sub Component
Potential Collective Terminal Block
Features

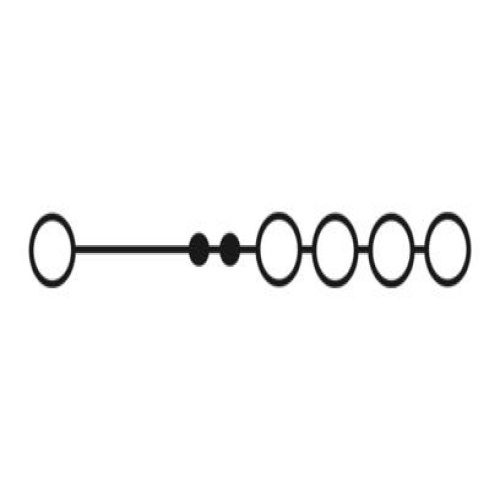

The STU 10/4x2,5 spring-cage hybrid terminal block is a space-saving potential distributor that distributes a 10 mm² supply line to four 2.5 mm² connections
Supplied using a 10 mm² screw connection
The system-internal distribution is via four spring-cage connections with a nominal cross section of 2.5 mm²
The double bridge shaft supports further potential distributions
Can be consistently bridged to standard terminal blocks in the ST spring-cage terminal block series
