Code: 41077

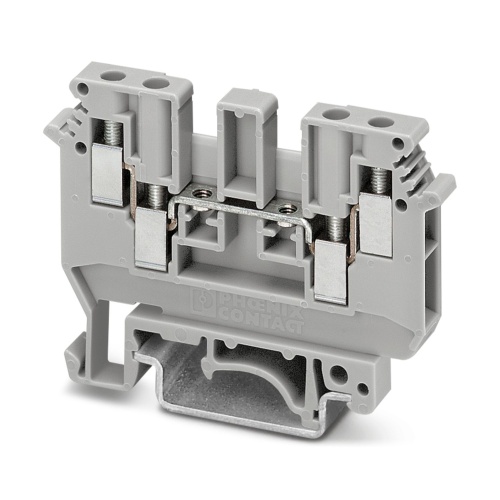

Phoenix Contact 2775016 Feed-through terminal block UDK 4
Normally In Stock
UDK 4 Phoenix Contact 2775016 Feed Through Terminal Block - UDK 4 Screw Connection 1 Level 6.2 mm with 4 Connections. Not Grounded, Not Fused Gray. 630 Volt, 32 Amp max rating.
Condition: New
Usually Ships Same day or Next Day$6.44
Sale Price
$5.37
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 2775016 The feed-through terminal block features a nominal voltage of 630 V and can handle a maximum current of 32 A through screw connections. It has four connection points and one position available for installation, with rated cross sections ranging from 0.2 mm² to 6 mm². The mounting type is NS 35/7.5, NS 35/15, or NS 32, and the block is color-coded gray.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Voltage Rating
630 Volt
Terminal Block Fused
Not Fused
Terminal Block Width
6.2 mm
Terminal Block Number of Levels
1
Terminal Block Number of Connections
4
Terminal Block Component Color
Gray
Terminal Block Connection Method
Screw Connection
Terminal Block Grounded
Not Grounded
Terminal Block Min Wire Size
24
Terminal Block Max Wire Size
10
Terminal Block Amperage
32 Amp
Component
Terminal Block
Manufacturer
Phoenix Contact
Sub Component
Feed-Through Terminal Block
Sub Component
Multi-Conductor Terminal Block
Features
Two connection points on each side to accommodate several conductors
Double bridge shaft enables individual potential distribution and supply
Downloads
Phoenix 2775016 CAD data International.dxfPhoenix 2775016 CAD data International.pdfPhoenix 2775016 CAD data International.stpPhoenix 2775016 Manufacturers declaration English.pdfPhoenix 2775016 Manufacturers declaration International.pdfPhoenix 2775016 Safety note English.pdfPhoenix 2775016 Tender Text English.zip
