Images are for illustration only and may not reflect the actual product. Refer to the description or specs.
Code: 41075

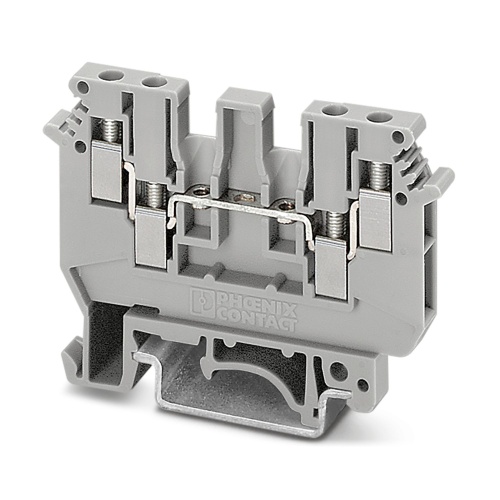

Phoenix Contact 2775375 Feed-through terminal block UDK 3
Normally In Stock
UDK 3 Phoenix Contact 2775375 Feed Through Terminal Block - UDK 3 Screw Connection 2 Level 5.2 mm with 4 Connections. Not Grounded, Not Fused Gray. 500 Volt, 24 Amp max rating.
Condition: New
Usually Ships Same day or Next Day$7.66
Sale Price
$6.38
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.

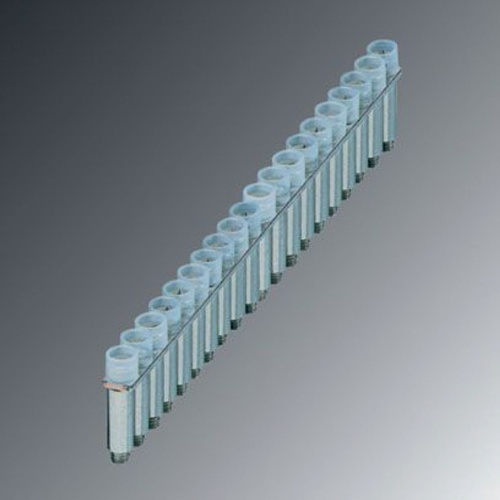

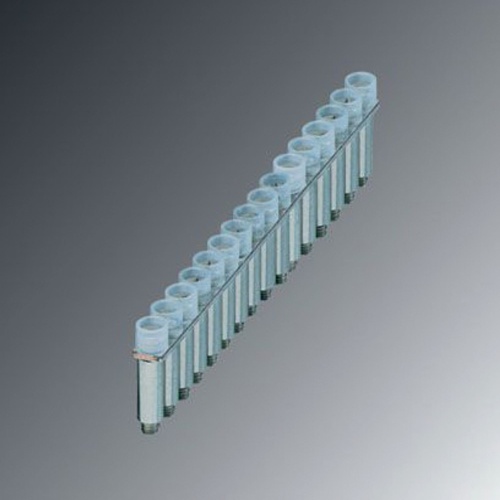

Related Products
Description
Phoenix Contact 2775375 The terminal block has a nominal voltage of 500V and a maximum current rating of 24A, with connections made via screw attachment. The cross-sectional area can range from 0.2mm² to 4mm², while the rated mounting types include NS 35/7.5, NS 35/15, and NS 32, all characterized by a gray color.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Voltage Rating
500 Volt
Terminal Block Fused
Not Fused
Terminal Block Width
5.2 mm
Terminal Block Number of Connections
4
Terminal Block Number of Levels
2
Terminal Block Component Color
Gray
Terminal Block Connection Method
Screw Connection
Terminal Block Grounded
Not Grounded
Terminal Block Max Wire Size
12
Terminal Block Min Wire Size
24
Terminal Block Amperage
24 Amp
Component
Terminal Block
Manufacturer
Phoenix Contact
Sub Component
Feed-Through Terminal Block
Sub Component
Multi-Conductor Terminal Block
Features
Two connection points on each side to accommodate several conductors
Double bridge shaft enables individual potential distribution and supply
Downloads
Phoenix 2775375 CAD data International.dxfPhoenix 2775375 CAD data International.pdfPhoenix 2775375 CAD data International.stpPhoenix 2775375 Manufacturers declaration English.pdfPhoenix 2775375 Manufacturers declaration International.pdfPhoenix 2775375 Safety note English.pdfPhoenix 2775375 Tender Text English.zip
