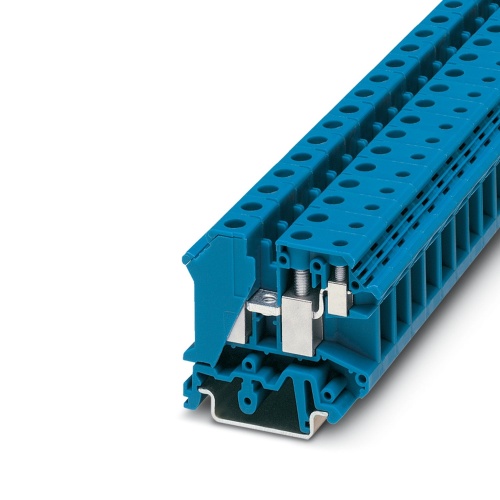

Phoenix Contact 3001475 Feed-through terminal block UK 10-PLUS BU
Normally In Stock
Code: 41072
UK 10-PLUS BU Phoenix Contact 3001475 Feed Through Terminal Block - UK 10-PLUS BU Screw Connection 2 Level 10.2 mm with 3 Connections. Not Grounded, Not Fused Blue. 800 Volt, 32 Amp max rating.
Condition: New
Usually ships within 7-14 days. Call for ship time.$10.69
Sale Price
$8.91
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 3001475 A feed-through terminal block is available with a nominal voltage of 800V and a nominal current capacity of 57A, featuring a screw connection method for secure attachment at one level, with rated cross sections ranging from 0.5mm² to 16mm², and additional smaller ratings of 4mm² and 6mm², all screw connected on the right side, suitable for mounting types including NS 35/7.5 and NS 35/15, and characterized by a blue color.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Voltage Rating
800 Volt
Terminal Block Fused
Not Fused
Terminal Block Width
10.2 mm
Terminal Block Number of Connections
3
Terminal Block Number of Levels
2
Terminal Block Component Color
Blue
Terminal Block Connection Method
Screw Connection
Terminal Block Grounded
Not Grounded
Terminal Block Amperage
57 Amp
Terminal Block Min Wire Size
20
Terminal Block Max Wire Size
6
Component
Terminal Block
Manufacturer
Phoenix Contact
Sub Component
Feed-Through Terminal Block
Sub Component
Multi-Conductor Terminal Block
Features
These twin modular terminal blocks are designed for the basic task of potential branching
Two independent conductor connections can be used on the control cabinet side
Universal foot for mounting on NS 35.. or NS 32... DIN rails
Easy connection of different types of conductors with different cross sections
Can be bridged in the terminal center, even with neighboring feed-through terminal blocks aligned
Downloads
Phoenix 3001475 CAD data International.dxfPhoenix 3001475 CAD data International.pdfPhoenix 3001475 CAD data International.stpPhoenix 3001475 Manufacturers declaration English.pdfPhoenix 3001475 Manufacturers declaration International.pdfPhoenix 3001475 Safety note English.pdfPhoenix 3001475 Tender Text English.zip
