Images are for illustration only and may not reflect the actual product. Refer to the description or specs.

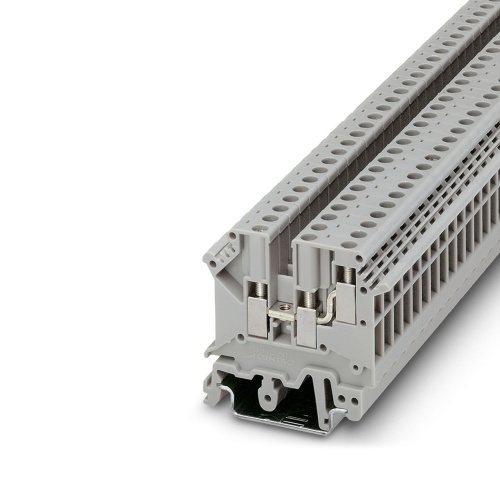

Phoenix Contact 1923021 Feed-through terminal block UK 5-TWIN
Normally In Stock
Code: 41064
UK 5-TWIN Phoenix Contact 1923021 Feed Through Terminal Block - UK 5-TWIN Screw Connection 2 Level 6.2 mm with 3 Connections. Not Grounded, Not Fused Gray. 500 Volt, 32 Amp max rating.
Condition: New
Usually Ships Same day or Next Day$5.94
Sale Price
$4.95
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 1923021 The terminal block features a feed-through design with a nominal voltage of 500 V and a nominal current capacity of 32 A, accommodating up to three connections via screw connections at one level, with rated cross-sectional areas ranging from 0.2 mm² to 4 mm², supported by mounting types including NS 35/7.5, NS 35/15, and NS 32, and a gray color scheme.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Voltage Rating
500 Volt
Terminal Block Fused
Not Fused
Terminal Block Width
6.2 mm
Terminal Block Number of Connections
3
Terminal Block Number of Levels
2
Terminal Block Component Color
Gray
Terminal Block Connection Method
Screw Connection
Terminal Block Grounded
Not Grounded
Terminal Block Max Wire Size
12
Terminal Block Min Wire Size
24
Terminal Block Amperage
32 Amp
Component
Terminal Block
Manufacturer
Phoenix Contact
Sub Component
Feed-Through Terminal Block
Sub Component
Multi-Conductor Terminal Block
Features
These twin modular terminal blocks are designed for the basic task of potential branching
Universal foot for mounting on NS 35.. or NS 32... DIN rails
Two independent conductor connections can be used on the control cabinet side
Easy connection of different types of conductors with different cross sections
Can be bridged in the terminal center, even with neighboring feed-through terminal blocks aligned
Downloads
Phoenix 1923021 User instructions for the Ex Area English.pdfPhoenix 1923021 Tender Text English.zipPhoenix 1923021 Safety note English.pdfPhoenix 1923021 Manufacturers declaration International.pdfPhoenix 1923021 Manufacturers declaration English.pdfPhoenix 1923021 Certification International.pdfPhoenix 1923021 Certification English.pdfPhoenix 1923021 CAD data International.stpPhoenix 1923021 CAD data International.pdfPhoenix 1923021 CAD data International.dxf
