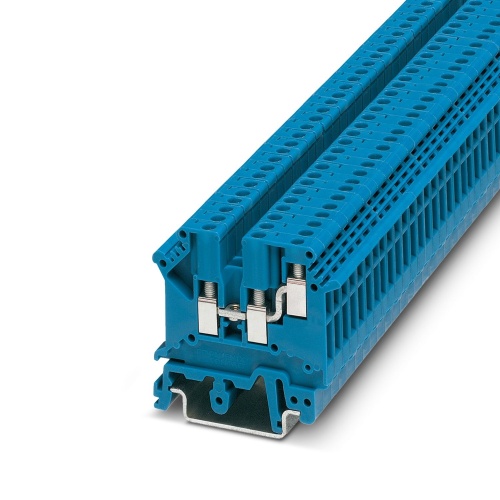

Phoenix Contact 3002416 Feed-through terminal block UK 3-TWIN BU
Normally In Stock
Code: 41063
UK 3-TWIN BU Phoenix Contact 3002416 Feed Through Terminal Block - UK 3-TWIN BU Screw Connection 2 Level 5.2 mm with 3 Connections. Not Grounded, Not Fused Blue. 400 Volt, 24 Amp max rating.
Condition: New
Usually ships within 7-14 days. Call for ship time.$6.55
Sale Price
$5.46
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 3002416 A feed-through terminal block with a nominal voltage of 400 V and a nominal current rating of 24 A features a screw connection method at one level, with a rated cross-sectional area of 2.5 mm², spanning between 0.2 mm² and 2.5 mm². The mounting type options include NS 35/7,5, NS 35/15, and NS 32, while the terminal block color is blue.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Voltage Rating
400 Volt
Terminal Block Fused
Not Fused
Terminal Block Width
5.2 mm
Terminal Block Number of Connections
3
Terminal Block Number of Levels
2
Terminal Block Component Color
Blue
Terminal Block Connection Method
Screw Connection
Terminal Block Grounded
Not Grounded
Terminal Block Min Wire Size
24
Terminal Block Max Wire Size
14
Terminal Block Amperage
24 Amp
Component
Terminal Block
Manufacturer
Phoenix Contact
Sub Component
Feed-Through Terminal Block
Sub Component
Multi-Conductor Terminal Block
Features
These twin modular terminal blocks are designed for the basic task of potential branching
Universal foot for mounting on NS 35.. or NS 32... DIN rails

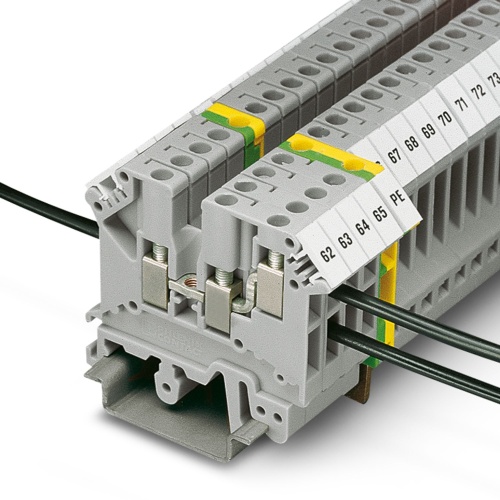

Two independent conductor connections can be used on the control cabinet side
Easy connection of different types of conductors with different cross sections
Can be bridged in the terminal center, even with neighboring feed-through terminal blocks aligned
Downloads
Phoenix 3002416 CAD data International.dxfPhoenix 3002416 CAD data International.pdfPhoenix 3002416 CAD data International.stpPhoenix 3002416 Manufacturers declaration English.pdfPhoenix 3002416 Manufacturers declaration International.pdfPhoenix 3002416 Safety note English.pdfPhoenix 3002416 Tender Text English.zip
